Sturdi Single Chain Pipe Clamp
Brands We Sell

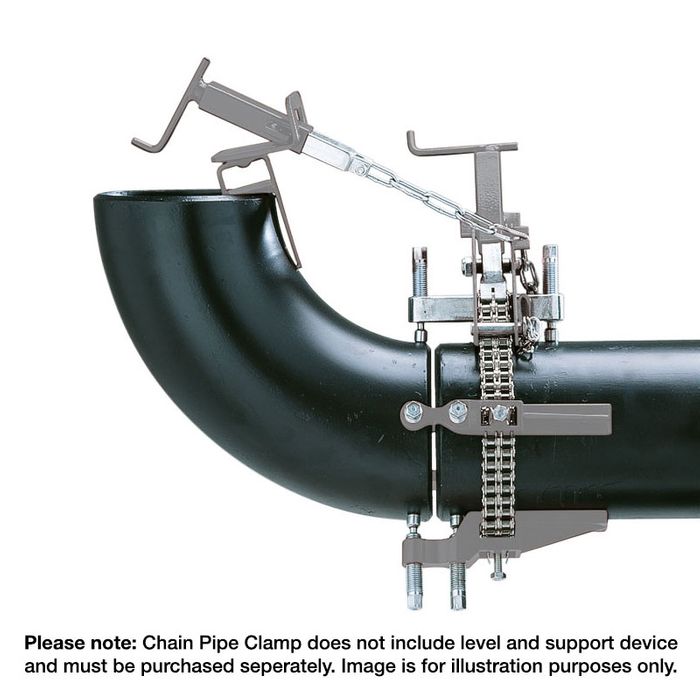

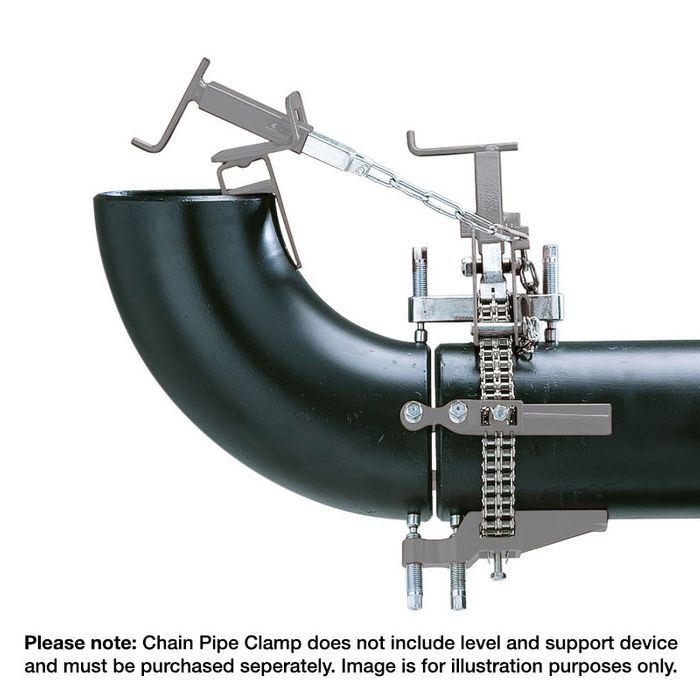

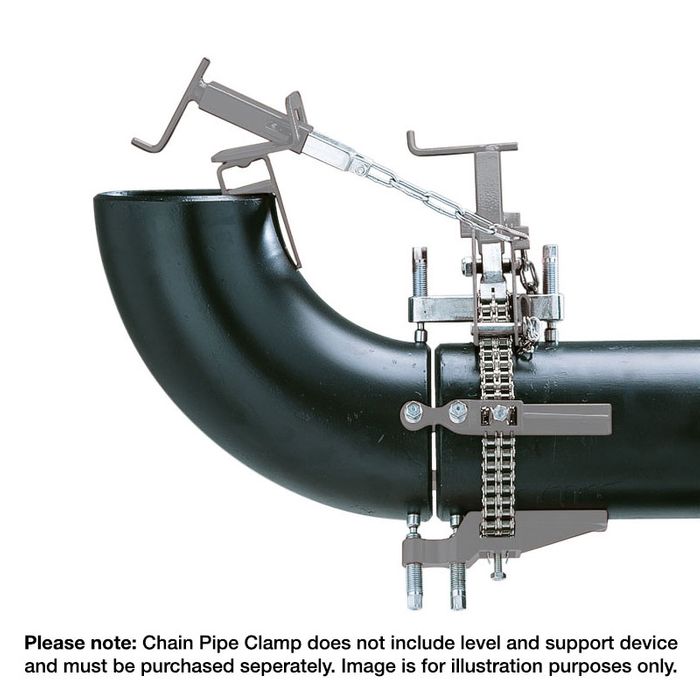

The Mathey Dearman Sturdi Chain Pipe Clamp is ideal for schedule 40 and below pipe alignment and reforming.
Traditional methods for aligning heavy wall pipe, such as ratchet cable pullers, lugs and bottle jacks are time consuming and inconsistent in the results they achieve, making them unsuitable for the majority of critical alignment applications. One clamp can fit up a variety of sizes of pipes 1" to 36" (25mm to 914mm) diameter, elbows, tees, flanges end caps and most other pipe fittings (using the optional level and support device).
The high rise jackbars and main block provide the strength to reform the pipe either side of the weld gap to eliminate “Hi-Lo”, whilst enabling the welder to weld the entire circumference of the pipe with the clamp in situ.
All Mathey Dearman Sturdi Clamps feature stainless steel jackscrews, jackbars and main blocks.
Mathey Dearman Sturdi Pipe Clamp includes:
• Nickel plated carbon steel or stainless steel duplex roller chain
• Stainless steel single or double jackscrew jackbars - quantity as indicated in specifications
• Stainless steel main block
• Jackscrew breaker bar and socket
• Heavy duty storage box
• Parts and operating manual
Please note: Sturdi Clamp does not include level and support device and must be purchased seperately. Calculations are based on pipe with a tensile strength of 45,000 Ibs. per square inch (3,168kg per square centimeter).
| Image | Part Number | Description | Details | Price | Quantity |
|---|---|---|---|---|---|
|
D250-SC
|
Sturdi Single Chain Pipe Clamp 25-305mm
Stock Code:
D250-SC
Details
Downloads |
Details
|
Contact Us For Price
|
|
|
D250-SSSC
|

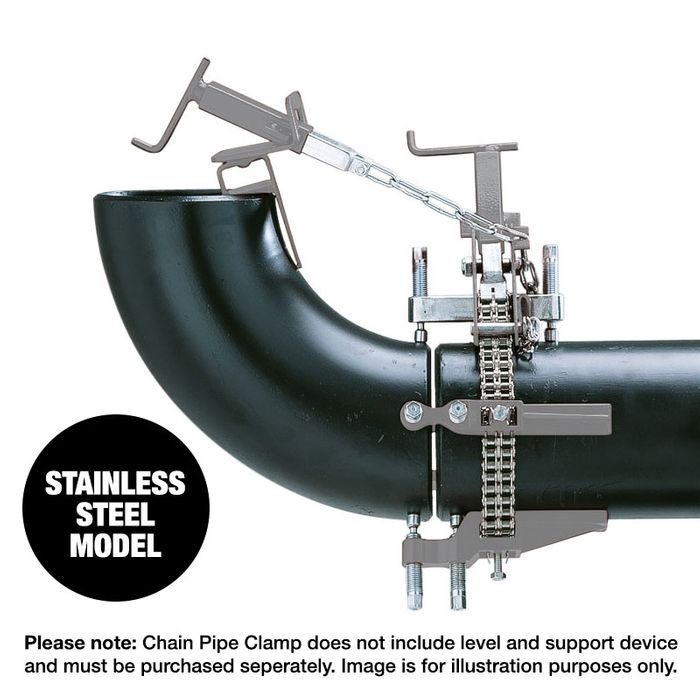

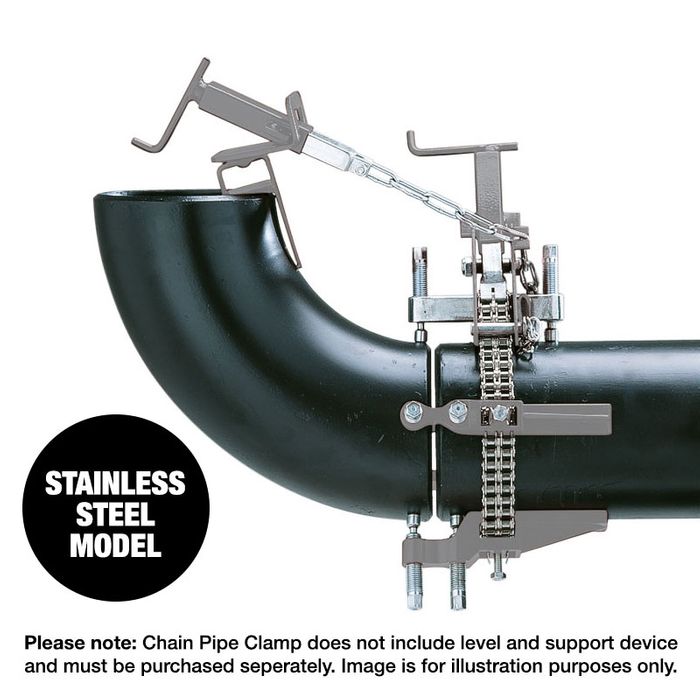

Sturdi Single Chain Pipe Clamp 25-305mm - Stainless Steel
Suitable for Stainless Steel
Stock Code:
D250-SSSC
Details
Downloads |
Details
|
Contact Us For Price
|
|
|
D249-SC
|
Sturdi Single Chain Pipe Clamp 102-508mm
Stock Code:
D249-SC
Details
Downloads |
Details
|
Contact Us For Price
|
|
|
D249SCSS
|
Sturdi Single Chain Pipe Clamp 102-508mm - Stainless Steel
Suitable for Stainless Steel
Stock Code:
D249SCSS
Details
Downloads |
Details
|
Contact Us For Price
|
|
|
D235-SC
|
Sturdi Single Chain Pipe Clamp 254-914mm
Stock Code:
D235-SC
Details
Downloads |
Details
|
Contact Us For Price
|
|
|
D235-SCSS
|
Sturdi Single Chain Pipe Clamp 254-914mm - Stainless Steel
Suitable for Stainless Steel
Stock Code:
D235-SCSS
Details
Downloads |
Details
|
Contact Us For Price
|
|
|
D236-SC
|
Sturdi Single Chain Pipe Clamp 254-1372mm
Stock Code:
D236-SC
Details
Downloads |
Details
|
Contact Us For Price
|
|
|
D236-SCSS
|
Sturdi Single Chain Pipe Clamp 254-1372mm - Stainless Steel
Suitable for Stainless Steel
Stock Code:
D236-SCSS
Details
Downloads |
Details
|
Contact Us For Price
|
|
|
D237-SC
|
Sturdi Single Chain Pipe Clamp 254-1827mm
Stock Code:
D237-SC
Details
Downloads |
Details
|
Contact Us For Price
|
|
|
D237-SCSS
|
Sturdi Single Chain Pipe Clamp 254-1827mm - Stainless Steel
Suitable for Stainless Steel
Stock Code:
D237-SCSS
Details
Downloads |
Details
|
Contact Us For Price
|
|
