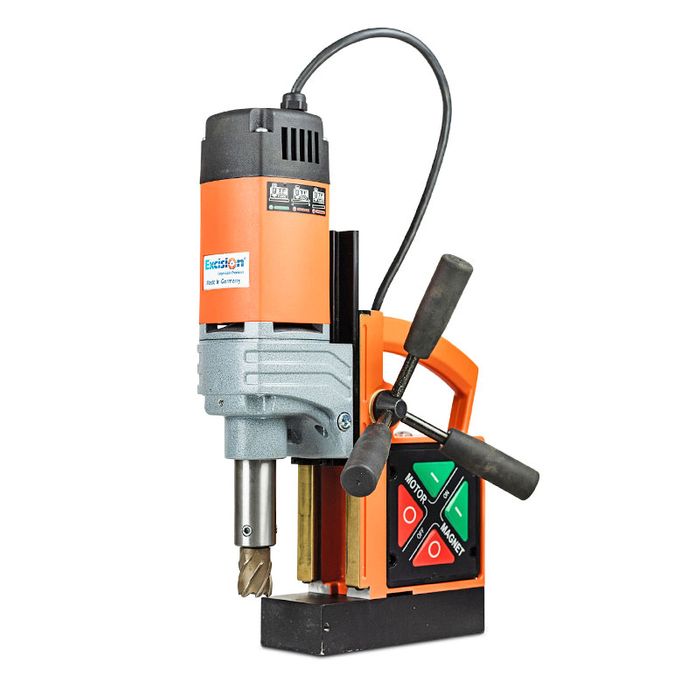

Excision EM40 Magnetic Drill

Stock Code:
18500
Price:
$2,196.00 excl GST
Stock Level:
Currently in Stock
Qty Quote or Package Deal
Add to Favourites



Description

The EM40 is the flagship of Excision's Magnetic based drill range. With 40mm capacity and advanced safety features, this is the machine for industrial workloads. Double height adjustment allows a broad range of applications including the use of a standard 13mm chuck and jobber drill.

Features:
• 2 Coil 9,000N Magnetic adhesion for industrial use
• Spring loaded guides for rigid gliding and reduced vibration
• Height adjustable slide enables an increased range of applications including standard twist drills
• Smart start feature protects the motor to increase longevity
• Direct Weldon arbor type spindle for use with all 19mm shank core drills

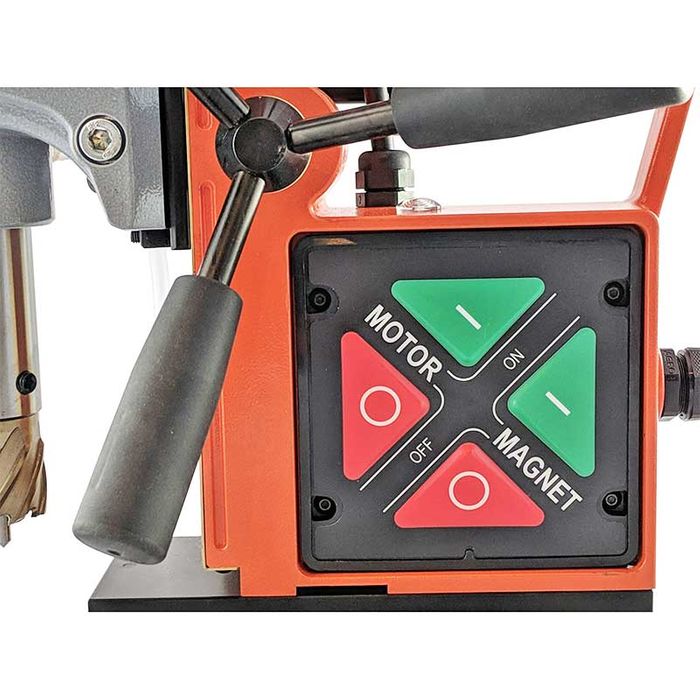

• Durable touch pad for ergonomic use
• Hybrid relays to protect circuit board from voltage spikes

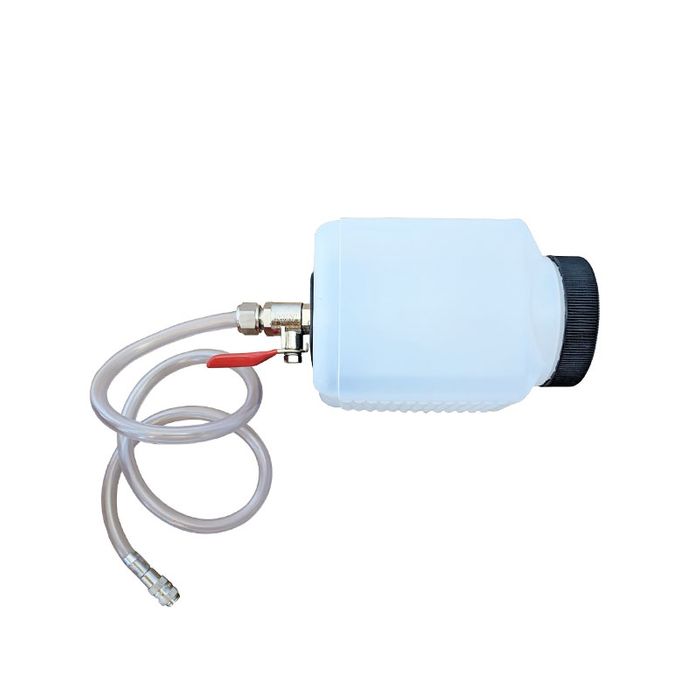

• Integrated coolant system to increase the life of your core drills

Specifications:
Core Drill Dimensions: 12.0-40.0mm
Cutting Depth: 50.0mm
Twist Drill: 1.0-13.0mm
Counter-Boring: 10.0-40.0mm
Arbors: Quick-Release Chuck
Stroke: 129mm
Height Adjustment: 86mm
Gearbox-On-load Speed: 450rpm
Power Consumption: 1,100W
Voltage: 240V 50/60Hz
Tool Force (10mm)/Magnetic Adhesion Strength: 2,100N/9,000N
Magnetic Base: 70 × 185mm
Weight: 11.5kg
Warranty: Includes two year manufacturer's warranty

Details

  • Brand:
    Excision
  • Unit/Pack:
    EA
  • Pack Qty:
    1
  • Power Supply:
    240V
