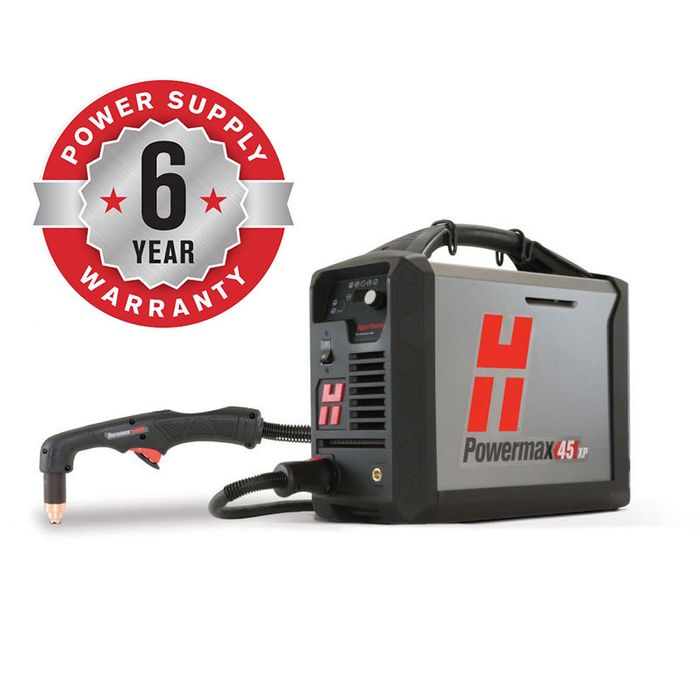

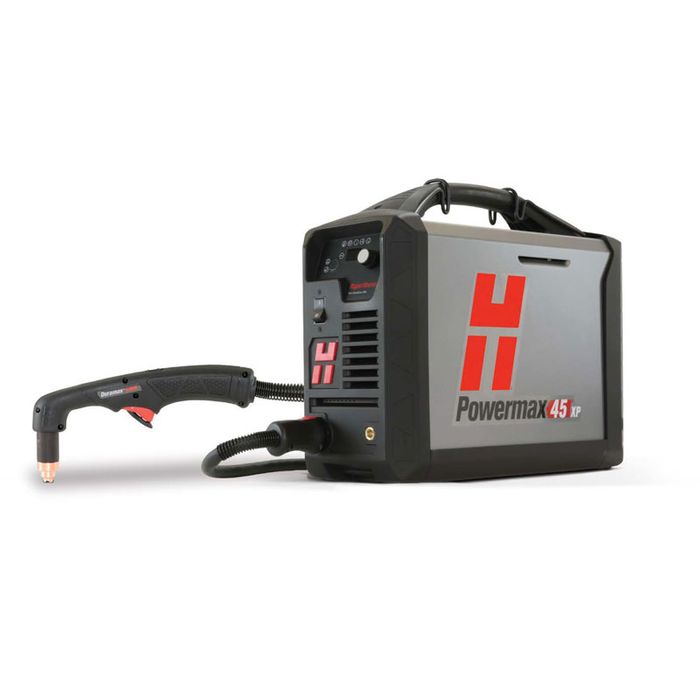

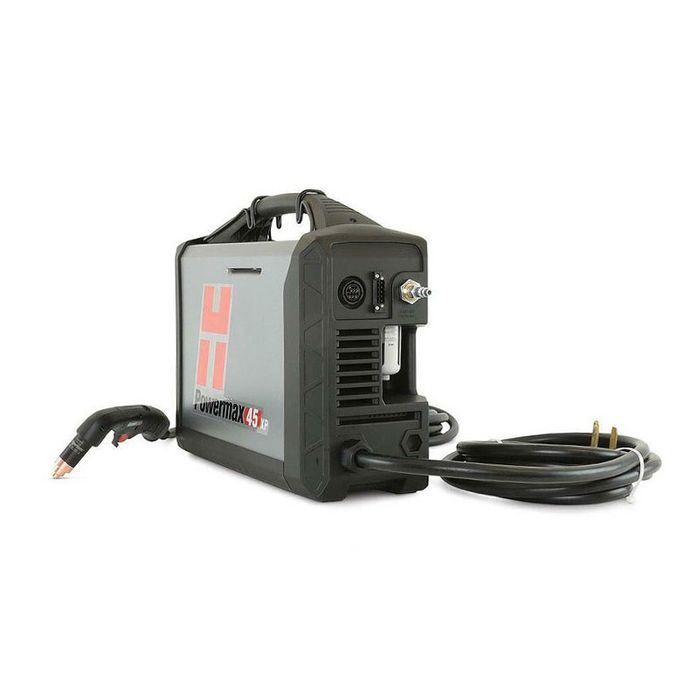

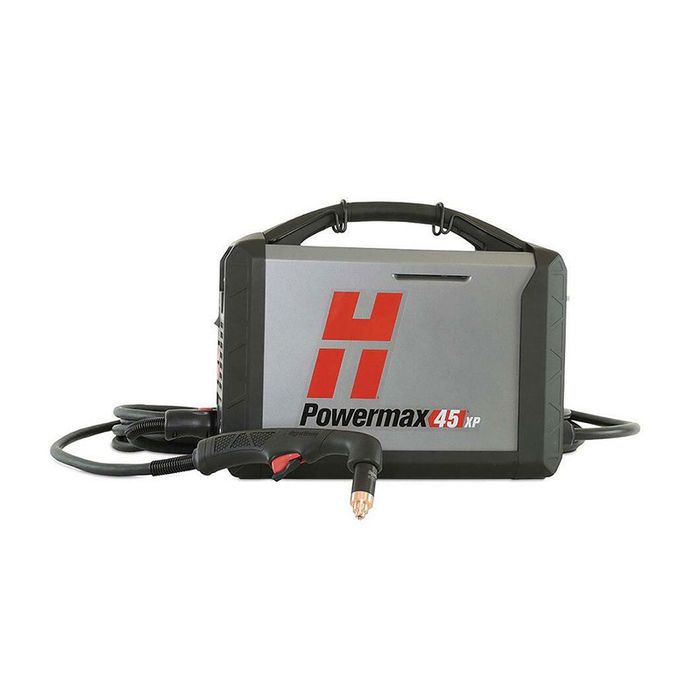

Hypertherm Powermax 45XP 240V

Stock Code:
088130
Contact Us For Price
Stock Level:
Currently in Stock
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

The Hypertherm Powermax 45XP delivers increased cut capacity – up to 16 mm (5/8″) metal – as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation. Duramax Lock torches support handheld and mechanised cutting of a wider range of metal thicknesses, along with precision gouging such as spot weld removal, and marking capabilities.

Key features:
• 12mm pierce capacity
• Weighs 16kg – light weight and portable
• Drag cutting technology
• Designed for demand and heavy-duty applications
• Pressure accurate technology
• Choose from handheld and mechanised use
• Use on sheet and scrap metals
• Cutting, gouging, extended reach cutting, and precision gouging and marking
• High heat resistance

Industry applications:
• Agriculture
• Repair works
• Maintenance
• Plasma tables
• Spot weld removal

Plasma cutter capacity:
• Cutting: 16mm (5/8") at 500mm/min (20 ipm) | 22mm (7/8") at 250mm/min (10 ipm)
• Severance: 29mm (1-1/8") at 125 mm/min (5 ipm)
• Pierce: 12mm (1/2")
• Gouging: 3-4kg per hour

Specifications:
Input voltage: 240V
Output: 10-45A
Duty cycle:
50% @ 45 A, 230 V, 1Ph
60% @ 41 A, 230 V, 1Ph
100% @ 32 A, 230 V, 1Ph
Weight: 15kg
Size: 442mmD x 173mmW x 357mmH
Recommended gas:
Cutting: Air (clean, dry and oil-free), Nitrogen, F5
Gouging: Air (clean, dry and oil-free), Nitrogen, F5
Marking: Air (clean dry and oil-free) Argon
Recommended gas flow/pressure: 188 I/min (400 scfh) @ 5,9 bar (90 psi)
Engine drive requirements: 10kW (45A output)

Details

  • Brand:
    Hypertherm
  • Web Type:
    Hypertherm Machines
  • Unit/Pack:
    EA
  • Pack Qty:
    1
