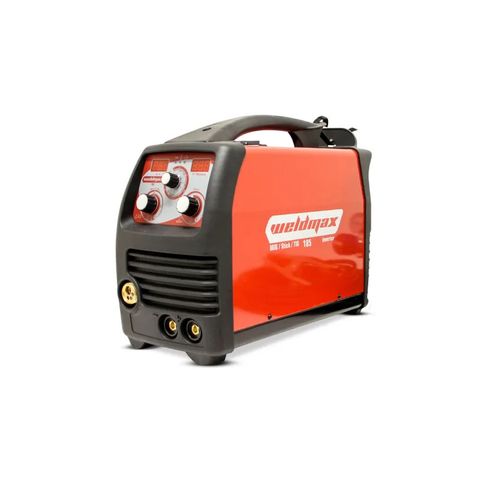

Weldmax 185 Digital MIG/TIG/MMA Inverter

Stock Code:
WEMS185
Price:
$2,161.00 excl GST
Stock Level:
Currently in Stock
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

Compact, lightweight, microprocessor-controlled welding inverter suitable for MIG/MAG, MMA and TIG welding processes. Optimum performances in welding: in manual and synergic mode for the Weldmax 185.

The “synergy” helps users to adjust the welding parameters correctly! Simply select the desired combination between wire diameter, gas type and thickness to be welded. The wire speed will be adjusted automatically by the machine with it’s Integrated 2-roll wire feed.

Applications:
• Steel and stainless manufacturing industry
• Automotive repairs
• Machinery and mechanical maintenance
• Project plate boat builders
• Race car roll frames and tubular steels
• Low-splatter MIG/MAG

Features:
• Welding process: MIG synergic, MIG standard, MMA & TIG
• Welding programs for mild steel, stainless steel, for wires up to 1,0 mm for most metals
• Convenient operation directly on the front panel
• Hotstart and Arc–Force – function for MMA welding (stick)
• Highly energy efficient – low power consumption using inverter technology
• Robust metal 2-roll wire feed drive system
• All welding cable connections use standard Australian style connectors
• Gas/Gasless polarity reversal function for welding with solid or flux cored welding wires

Specifications:
Input Power: 230V 50/60Hz
Output Power: 60% 2.8KVA
Duty Cycle:
MMA: 160A @ 20% / 90A @ 60%
TIG: 160A @ 20% / 90A @ 60%
MIG: 170A @ 25% / 110A @ 60% / 85A @ 100%
Wire Dia. Capacity:
Aluminium: 0.8 - 1.0 Ø mm
Steel: 0.8 - 1.0 Ø mm
Flux Core: 0.8 - 1.0 Ø mm
Stainless Steel: 0.8 - 1.0 Ø mm
Brazing: 0.8 - 1.0 Ø mm
Electrode: 1.6 - 3.25 Ø mm
Protec. Degree: IP22S
Dimmensions (mm): 480Lx220Wx385D
Weight (kg): 11.5

Details

  • Brand:
    Weldmax
  • Web Type:
    Weldmax Machines
  • Unit/Pack:
    EA
  • Pack Qty:
    1
