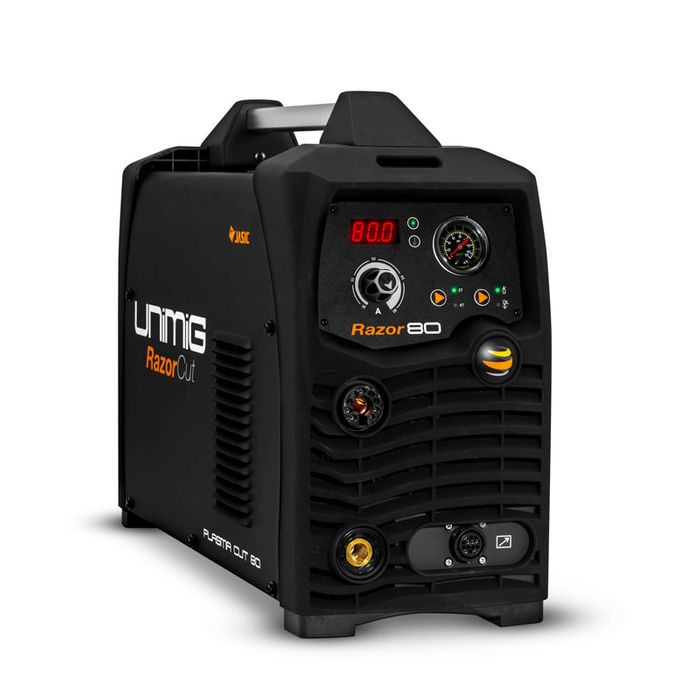

RAZOR CUT 80 Plasma Cutter Machine 415V

Stock Code:
KUPJRRW80
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

The RAZOR™ CUT 80 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 30mm and severing 35mm, this machine is for the professional needing maximum power from a portable machine.

Provides effortless cutting of all electrically conductive materials including steel, cast Iron, stainless steel, copper, aluminium brass etc.

Equipped with a high quality SureGrip SC80 Plasma torch with Euro connection. Packaged with a tough SureGrip SC80 Plasma torch, earth lead and air regulator.

Features:
• Latest IGBT Inverter Technology
• Safe Euro torch connection
• High quality SC80 Plasma torch
• Industrial application
• Tolerant to variable power supply
• In-built Air Regulator with preset air pressure
• Suitable to cut all electrically conductive materials
• Light weight and compact
• Strong metal housing, with plastic front and rear covers
• Generator use with pure sine wave generator only
• Manufactured in compliance to AS/NZS 60974-1

Specifications:
Power Supply/Phases: 415V - 3PH +/- 15%
Duty Cycle (40°C): 40% @ 80A
Rated Power: 22KVA
imax: 20A
ieff: 12.6A
Output Current Range Plasma: 20-80A
Rated Output Voltage: 340V
Insulation Class: F
Protection Class: IP21S
Plasma Arc Starting: Piolt L/F
Air Flow Pressure: 0.5MPA (75 psi)
Air Flow Rate: 189 LPM
Cutting Thickness: 30mm Clean
Cutting Thickness: 35mm Severance
Dimensions: 560mmL x 220mmW x 415mmH
Weight: 16kg
Certification Approval: AS/NZS 60974-1

Details

  • Brand:
    Unimig
  • Web Type:
    Unimig Machines
  • Unit/Pack:
    EA
  • Pack Qty:
    1
