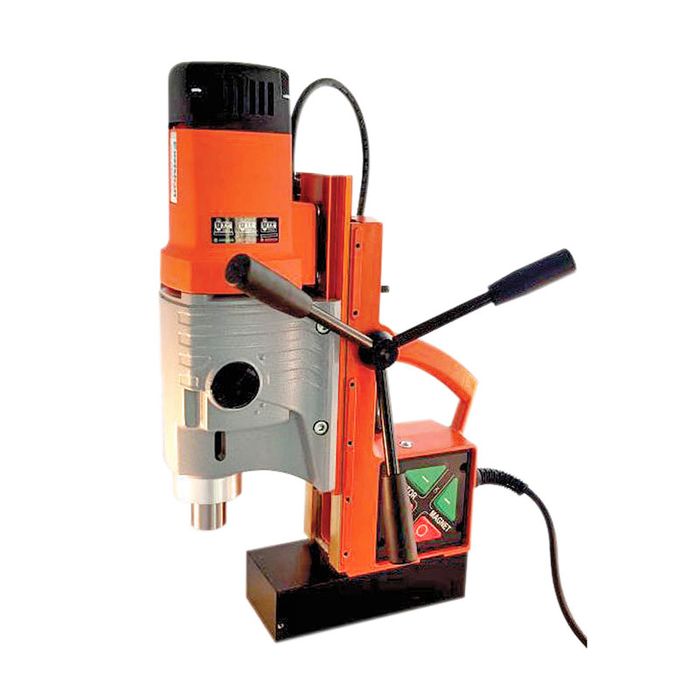

Excision EM80 Magnetic Drill

Stock Code:
18625
Price:
$5,620.00 excl GST
Special order item
Qty Quote or Package Deal
Add to Favourites

Description

Features:
• 3 Coil 20,000N Magnetic adhesion for industrial use
• 3 Coil Power Increase Magnet
• Solid Brass Guides
• Morse Taper 3
• Durable touch pad for ergonomic use
• Height Adjustable slide up to 280mm
• Twist Drilling Capacity 32mm
• 200mm Stroke

Specifications:
Core Drill Dimensions: 12.0-80.0mm/20.0-50.0mm (extra long 110mm)
Cutting Depth: 50.0mm/110.0mm
Twist Drill: 1.0-16.0mm with drill chuck up to 32.0mm with MT3 DIN 345
Counter-Boring: 10.0-55.0mm
Tapping: With tapping attachment: Up to M30
Arbors: MT3
Stroke: 190mm
Height Adjustment: 100mm
4-Speed Gearbox-Load Speed:
1. Step 110rpm
2. Step 175rpm
3. Step 245rpm
4. Step 385rpm
Power Consumption: 1,800W
Voltage: 240V 50/60Hz
Tool Force (10mm)/Magnetic Adhesion Strength: 4,000N/16,000N
Magnetic Base: 92 × 220mm
Weight: 19.5kg
Warranty: Includes two year manufacturer's warranty

Details

  • Brand:
    Excision
  • Unit/Pack:
    EA
  • Pack Qty:
    1
  • Power Supply:
    240V
