Hypertherm MAXPRO200 Plasma Cutter 415V

Stock Code:
078615
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites

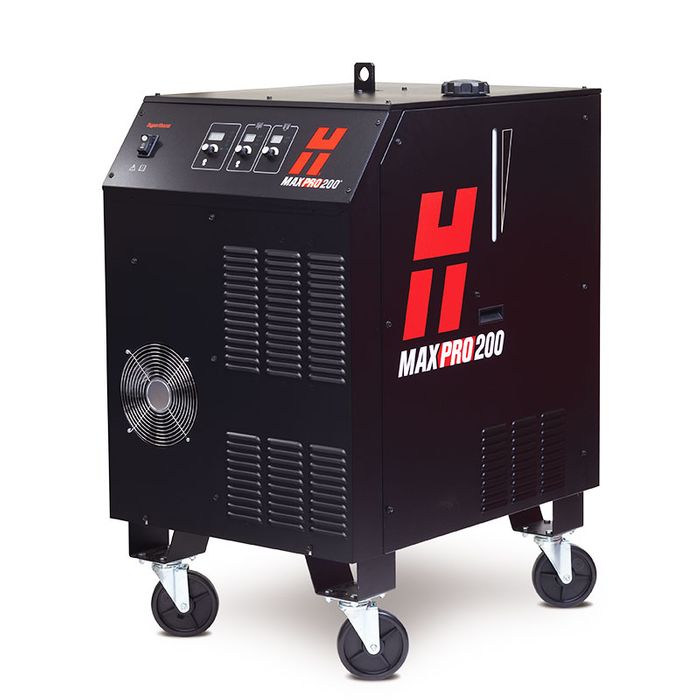

The Hypertherm MAXPRO200® Plasma Cutter is engineered for heavy-duty, high-capacity automated and handheld cutting and gouging applications. The easy-to-use system operates with air, oxygen, or nitrogen plasma gas, combining fast cutting speeds and quick process changes to maximise productivity.

Advanced Hypertherm consumable designs – including LongLife® technology – improve cut consistency and significantly increase consumable life to lower your cost per part. Proven technology you can trust.

BENEFITS

Maximised productivity

  • Fastest cut speeds in its class produce more finished parts per hour
  • Engineered with 100% duty cycle for the most demanding production environments.
  • Automatic settings, tool free leads and optional quick disconnect torches let you quickly transition between cutting, gouging, mechanized and handheld processes
  • Superior cut quality and consistency minimize the need for costly secondary operations

Easy operation

  • Optimised cutting parameters are automatically set and controlled in one step to deliver consistent results without operator intervention
  • Advanced diagnostics simplify troubleshooting and service
  • Optional serial communications allow full control of the system from the CNC

Low operating cost

  • Patented consumable designs enable best in class cut speeds and robust production piercing using lower amperage levels
  • Advanced consumable technologies including LongLife, CoolFlow™ and TrueFlow™ significantly increase consumable life to reduce cost per part

Industry-leading reliability

  • Robust, simple system architecture with 50% fewer parts than most competitive systems
  • Best-in-class manufacturing and extensive testing ensure that every Hypertherm system meets the highest quality standards

SPECIFICATIONS

Input voltage
415V, CE, 3 Phase, 50Hz, 52A

Output voltage
50–165 VDC

Maximum output current
200A

Duty cycle rating
100% @ 33kW, at 40°C

Operating temperature
-10°C to 40°C

Power factor
0.98 @ 33kW output

Maximum OCV
360 VDC

Dimensions
105cm Length x 69cm Width x 102cm Height

Weight
335kg

Gas supply
Plasma gas: Air, O², N²
Shield gas: Air, N²
Supply gas pressure: 6.2 +/- 0.7 bar (90 +/- 10 psig)

OPERATING DATA

  • Virtually dross-free cutting capacity - mild steel 20mm (3/4")
  • Production pierce capacity - mild steel 32mm (1 1/4")
  • Severance* - mild steel 75mm (3")
  • Bevel - 200 amp consumables support 45° bevel capability

Hypertherm-MAXPRO200-Operating-Data

* The thickness that can be severed at approximately 125mm/min (5 ipm) with reduced cut quality. Cutting at severance thickness should be infrequent.

Downloads

Description

Contact us on (08) 9456 8000 or email sales@alphaweld.com.au for further information.

Details

  • Brand:
    Hypertherm
  • Web Type:
    Hypertherm Machines
  • Unit/Pack:
    EA
  • Pack Qty:
    1
