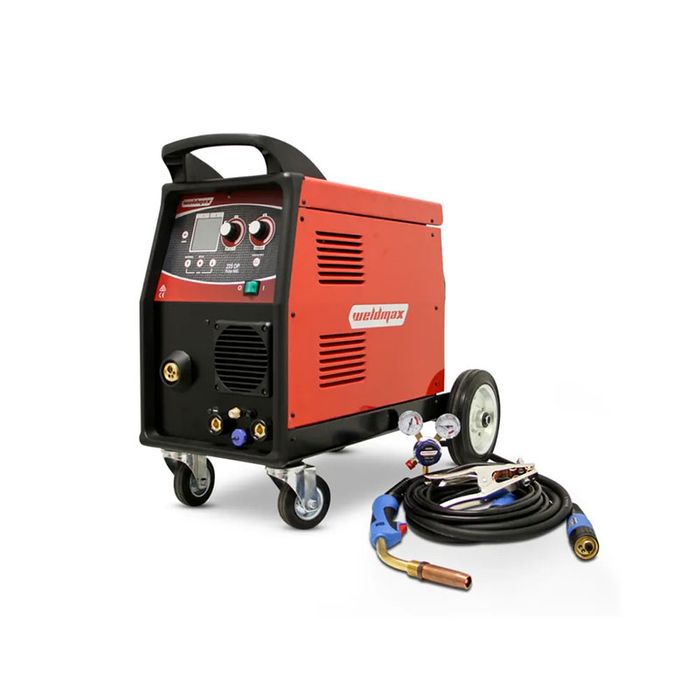

Weldmax 225 Double Pulse MIG/TIG/MMA Inverter

Stock Code:
WEMSP225DP
Price:
$7,040.00 excl GST
Stock Level:
Currently in Stock
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

The Weldmax 225 Double Pulse MIG is a microprocessor-controlled multi-process welding inverter suitable for MIG/MAG (manual, synergic, or pulsed or Double pulse MIG welding), TIG-DC (continuous or pulsed), and MMA welding. The large 85mm display shows all the welding parameters and makes settings easy and intuitive.

In synergic MIG/MAG welding, the microprocessor ensures easy and quick setting of the programs thus always guaranteeing optimal arc stability and the highest weld quality. MIG-MAG features: DC controlled or pulsed welding using pre-set synergic curves, program storage of your own custom weld parameters, 2T/4T & spot trigger function, pre-gas & post-gas time regulation, electronic reactance, soft start, burn-back time, hot start, slope down, crater fill.

Ideal for thin materials in boat building, sheetmetal fabricators, smash repair shops or trailer manufacturers.

Features:
• MIG Double Pulse / Single Pulsed / MIG Synergic / MIG manual welding mode
• Perfect 240V welding machine for aluminium, stainless steel and mild steels
• TIG DC standard & TIG DC pulsed arc for steel & stainless steels
• Digital display for amps, volts, material thickness, wire feed speed adjustment, etc
• Job / memory mode
• 2T / 4T & spot trigger functions
• Integrated 4 wheel drive wire feeder

Specifications:
Primary Input Voltage: 240V 1 Phase
Rated Output Mig: 200A
Rated Output MMA: 200A
Welding Current Range: 20 – 200A
Duty Cycle
100% @ 140A
40% @ 200A
Maximum Welding Output: 200A
Mig Wire Diameter Range: 0.8 - 1.2 mm
Electrode Diameter Range: 2.5-40mm
No Load Voltage: 65A
Dimensions (mm): 770L x 450W x 660H
Weight (Kgs): 42

Details

  • Brand:
    Weldmax
  • Web Type:
    Weldmax Machines
  • Unit/Pack:
    EA
  • Pack Qty:
    1
