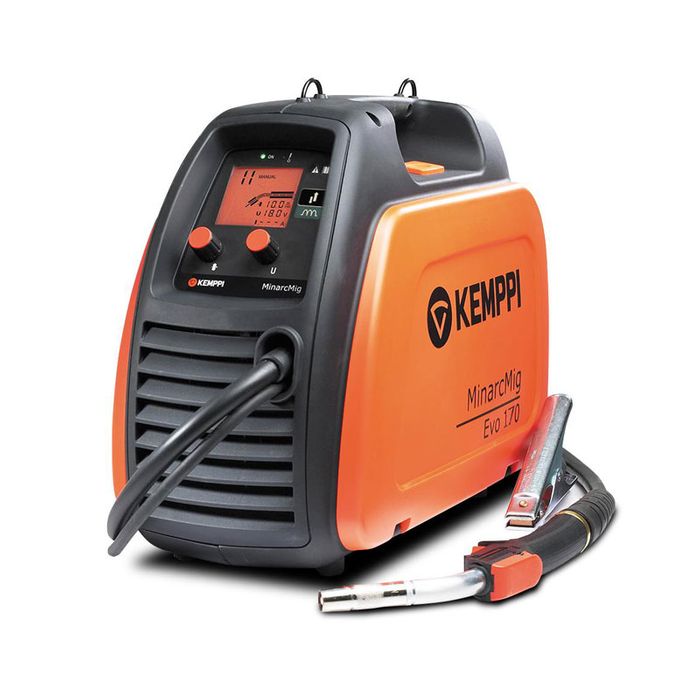

Kemppi Minarc MIG Evo 170 Welder

Stock Code:
P0683
Price:
$2,781.00 excl GST

Description

Minarc MIG Evo machines pack huge MIG/MAG welding capacity and quality into their portable, compact size. Delivering their welding power at 35% duty cycle from a 16A single phase mains supply they deliver premium results wherever your work takes you.

Precise weld quality and arc ignition.
Automatic or Manual modes.
Large graphical display guides user.
Designed for use with long supply cables of 100m+
A 3.0m gun, cable set and carrying strap included.
Suitable for mains network or generator use.
Kemppi 3+ warranty for parts and labour.

Specifications
Input Power: 240V/1Ph
Fuse: 16A
Minimum Generator Power(kVA): 4.2
Welding Range: 20A/ 15V – 170A/24V
Duty Cycle: 170A@35% / 100A@100%
Open Circuit Voltage: 70-75
Operating Temperature Range(C)-20° to +40°
Protection: IP23S
Max Spool Weight (kg): 5.0
Max Spool Diameter(mm): 200
External dimensions(mm):450L x 227W x 368H
Weight(kg): 13

Details

  • Brand:
    Kemppi
  • Web Type:
    Kemppi Machines
  • Unit/Pack:
    EA
  • Pack Qty:
    1
