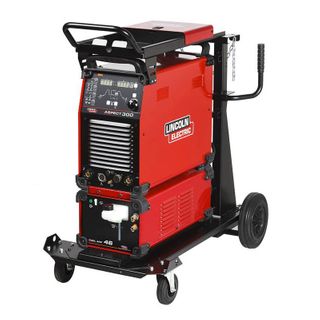

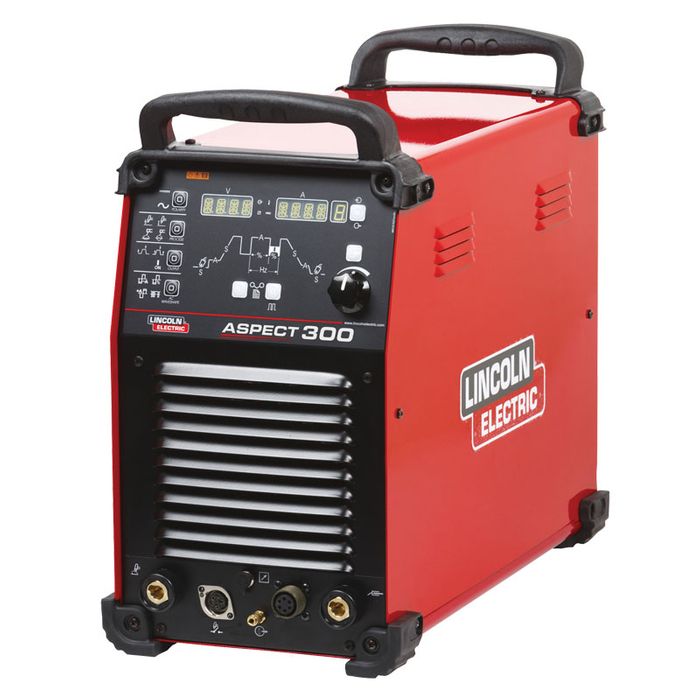

Lincoln Aspect 300 ACDC TIG Welder 415V

Stock Code:
K12058-1
Price:
$8,770.00 excl GST
Stock Level:
Currently in Stock
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

This industrial AC/DC TIG welder has been designed and built to perform in the most hazardous environments at high outputs: 300A at 35% duty cycle both in TIG AC and TIG DC application. The controller provides all the features you would expect from industrial AC/DC TIG inverter welders.

Features:
• Advanced inverter technology for superior TIG performance
• Superb welding characteristics with TIG DC, TIG AC and Stick welding processes
• Adjustable cleaning and penetration for perfect aluminium welding
• Variable AC frequency (40-400Hz) for control of travel speed and penetration
• Full function user-friendly control panel layout with graph and a numeric display makes it easy to set all welding parameters
• Cellulosic capability

Specifications:
Input Power: 415V/3Ph/50-60Hz
Fuse size (A): 32/20
Output range (A): 2-200
Rated output: 300A/22V/35%
200A/18V/100% @ 35% 200A @ 100%
Processes: Stick, TIG Pulse, TIG HF, Lift TIG
Protection Class: IP23
Generator Compatible: =9 kVA (peak maximum 380V)
Dimensions (mm): 455H x 300W x 632D
Weight (kg): 43

Details

  • Brand:
    Lincoln Electric
  • Web Type:
    Lincoln Electric Machines
  • Unit/Pack:
    EA
  • Pack Qty:
    1
