Katbak Ceramic Weld Backing 1G33-45

Stock Code:
1G3345
Price:
$92.90 excl GST
Stock Level:
Currently in Stock
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

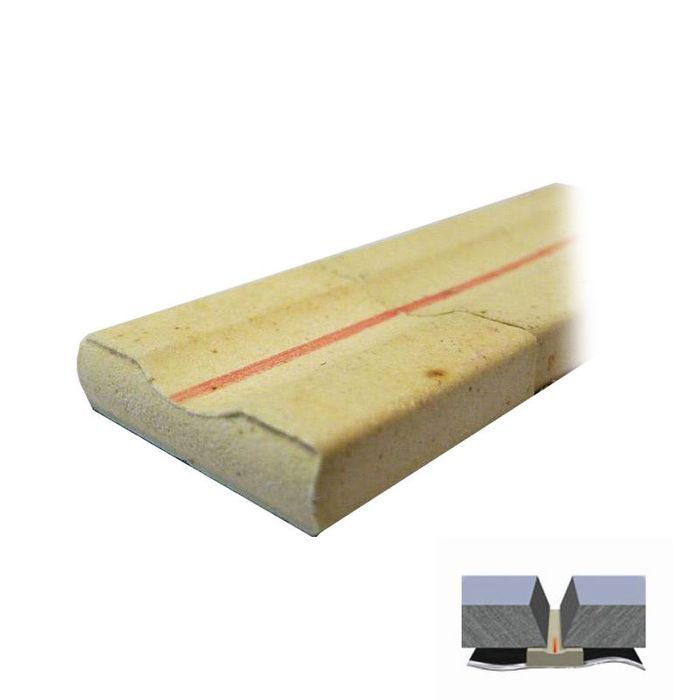

KATBAK Ceramic Weld Backing products offer a reliable and cost-effective method for producing high quality back beads without the need for costly gouging and grinding. Katbak Ceramics feature knuckle joints for use on either flat or curved surfaces.

Features & Benefits:
• Impart x-ray quality back beads on root pass
• Weld one side only
• Deposit more weld metal
• Root weld and fill in one pass

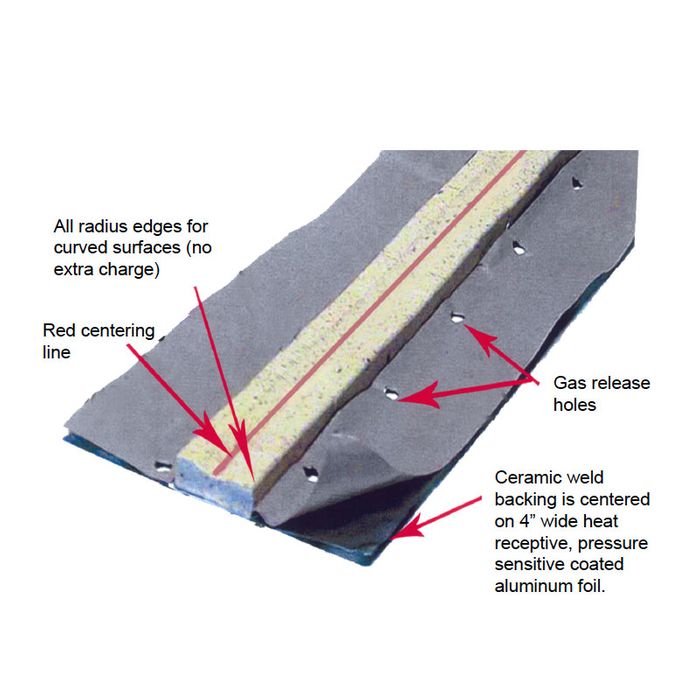

• Wider heat receptive pressure sensitive foil for improved adhesion
• Eliminate defects and rework
• Eliminate costly unnecessary gouging and grinding
• Sizes 1/4" (6.3 mm) to 2" (50.8 mm)

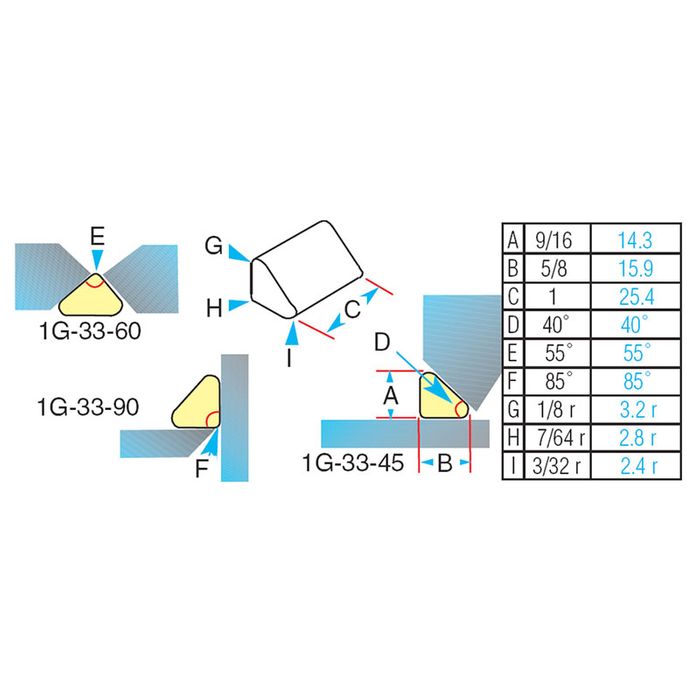

All 1G33 tiles are suitable for K or X preps where the bevel angles are 45, 60 or 90 degrees. Also suitable for welding with MIG/MAG solid wire, metal cored or flux cored wires. They are a substitute for round tiles where the benefit of the 1G33 range of tiles is a "full-face" contact with the joint preparation... reducing the risk of burn-through as may occur with the round tiles where you have a single point contact of the tile with the work piece. 1G33-90 also used when reverse side of a single bevel, single V butt joint where the reverse angle will always be 90°.

Details

  • Brand:
    Gullco
  • Web Type:
    Ceramic Weld Backing Bar
  • Unit/Pack:
    EA
  • Pack Qty:
    1
