Katbak Ceramic Weld Backing 1G41-R

Stock Code:
1G41R
Price:
$92.90 excl GST
Special order item
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

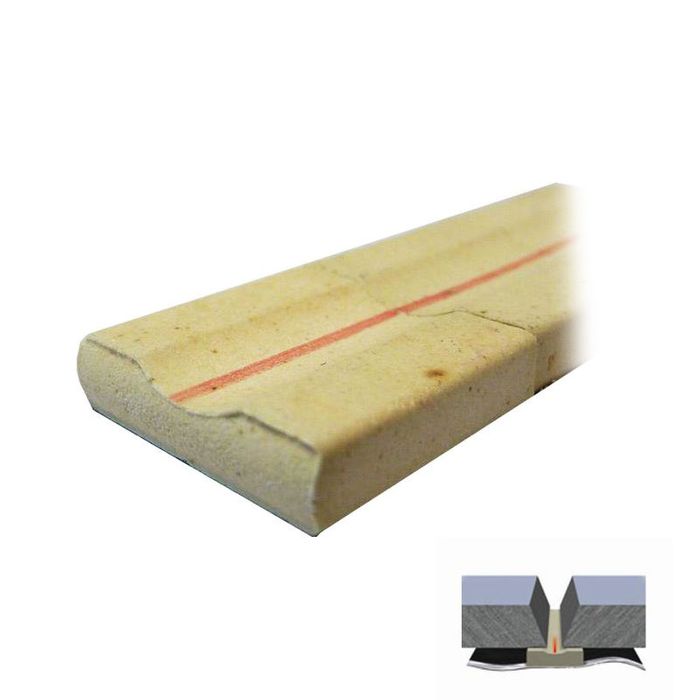

KATBAK Ceramic Weld Backing products offer a reliable and cost-effective method for producing high quality back beads without the need for costly gouging and grinding. Katbak Ceramics feature knuckle joints for use on either flat or curved surfaces.

Features & Benefits:
• Impart x-ray quality back beads on root pass
• Weld one side only
• Deposit more weld metal
• Root weld and fill in one pass

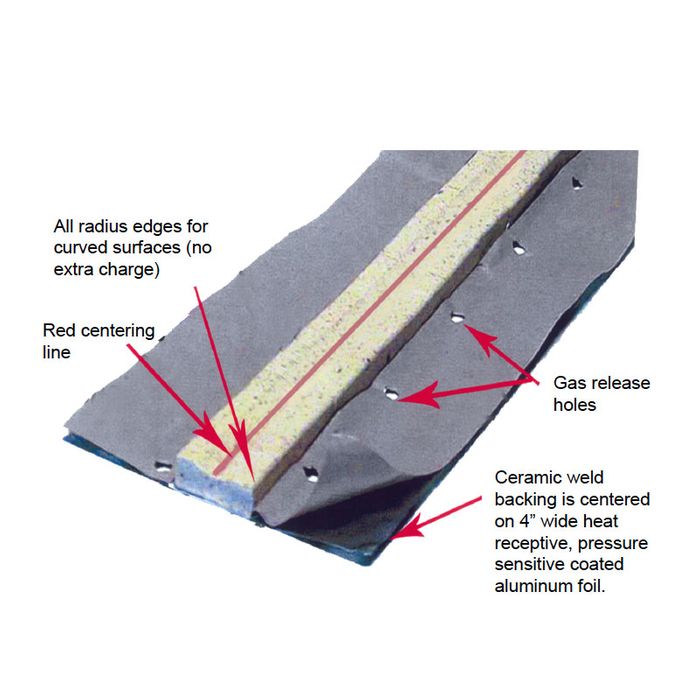

• Wider heat receptive pressure sensitive foil for improved adhesion
• Eliminate defects and rework
• Eliminate costly unnecessary gouging and grinding
• Sizes 1/4" (6.3 mm) to 2" (50.8 mm)

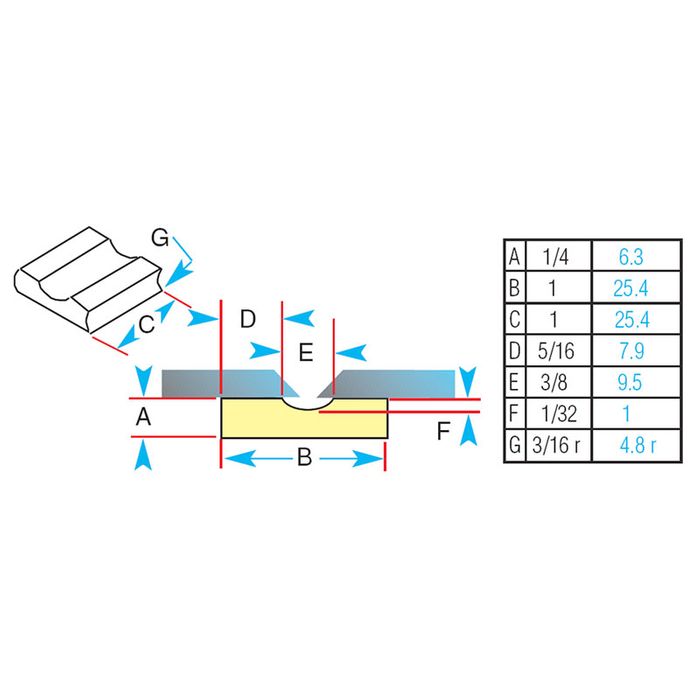

This is similar to the 1G42-R but has a slightly smaller groove where more penetration is required than with the 1G42-R. Each tile is radiused to form a strip around a cylinder.

Details

  • Brand:
    Gullco
  • Web Type:
    Ceramic Weld Backing Bar
  • Unit/Pack:
    BOX
  • Pack Qty:
    1
