Katbak Ceramic Weld Backing 1G93-R

Stock Code:
1G93R
Price:
$86.20 excl GST
Special order item
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

KATBAK Ceramic Weld Backing products offer a reliable and cost-effective method for producing high quality back beads without the need for costly gouging and grinding. Katbak Ceramics feature knuckle joints for use on either flat or curved surfaces.

Features & Benefits:
• Impart x-ray quality back beads on root pass
• Weld one side only
• Deposit more weld metal
• Root weld and fill in one pass
• Wider heat receptive pressure sensitive foil for improved adhesion
• Eliminate defects and rework
• Eliminate costly unnecessary gouging and grinding

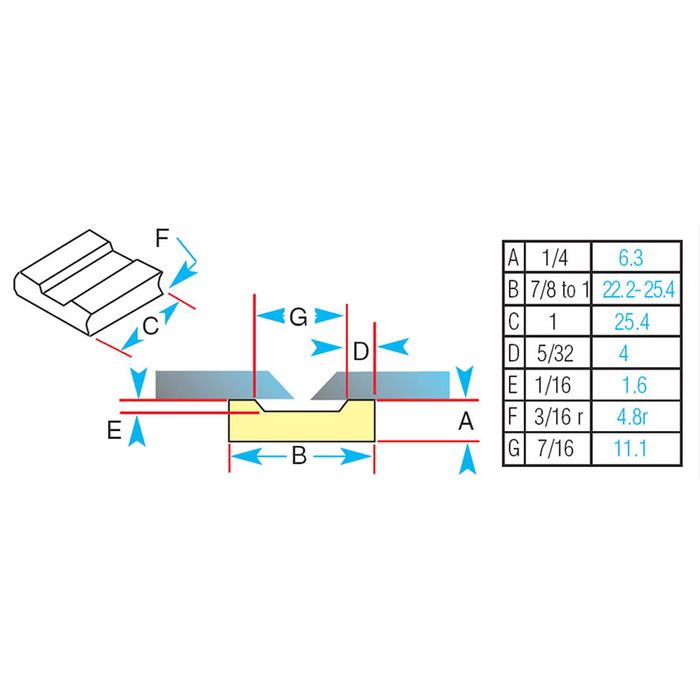

• Sizes 1/4" (6.3 mm) to 2" (50.8 mm)

This tile is most suitable for those applications where slag is involved, mainly MAG welding with cored wire. It gives space for the slag to go while leaving a good root bead. Each tile is radiused to form a strip around the cylinder.

Details

  • Brand:
    Gullco
  • Web Type:
    Ceramic Weld Backing Bar
  • Unit/Pack:
    BOX
  • Pack Qty:
    1
