AllClear MA100 Mobile Fume Filter Unit 1 Arm

Stock Code:
91100MA1
Contact Us For Price
Stock Level:
Currently in Stock
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

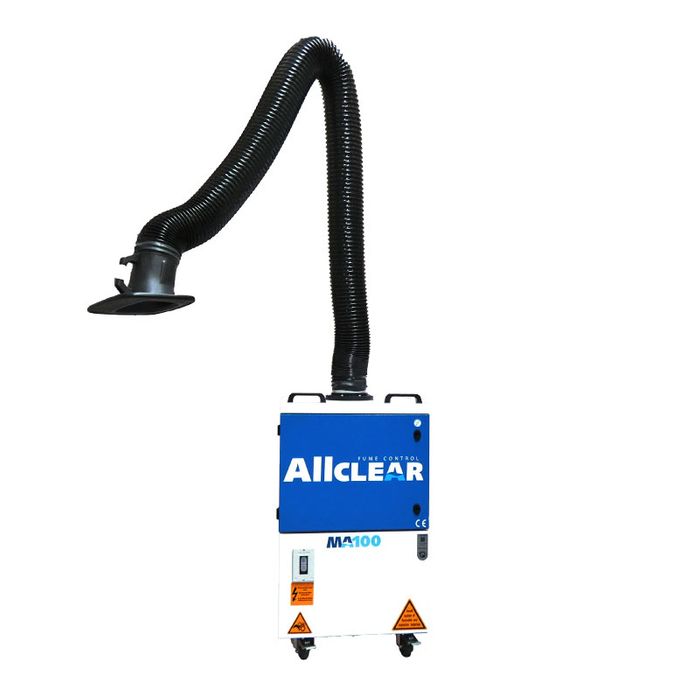

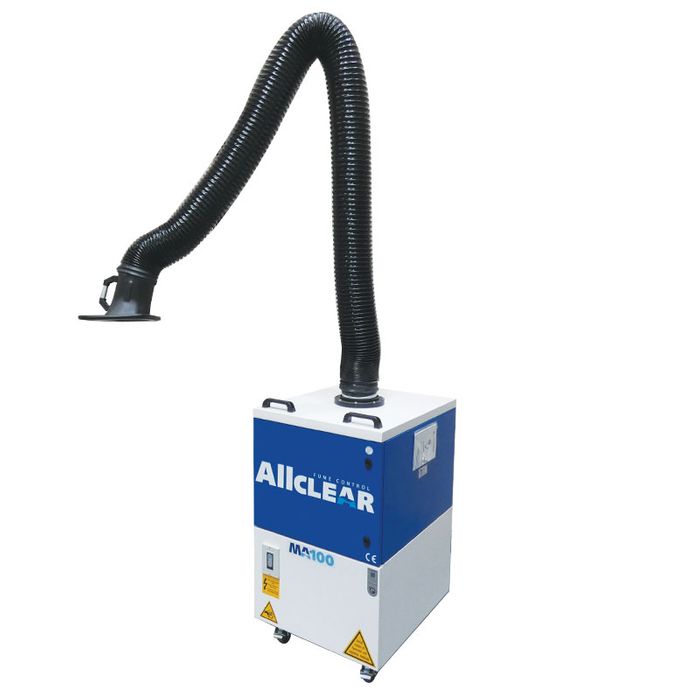

The AllClear MA100 is a durable welding and grinding fume extraction unit equipped with a 3-metre arm. It is one of the most compact and economical products of the AllClear fume extraction system series. Mounted on casters for greater mobility, the AllClear MA100 has cleanable filters and an impact plate above the filter to reduce the risk of burnout and increase the life of the filters.

Features:
• Compact design Takes up little space in the work area and allows for easy mobility.
• Ergonomic design This allows the user to access all functions.

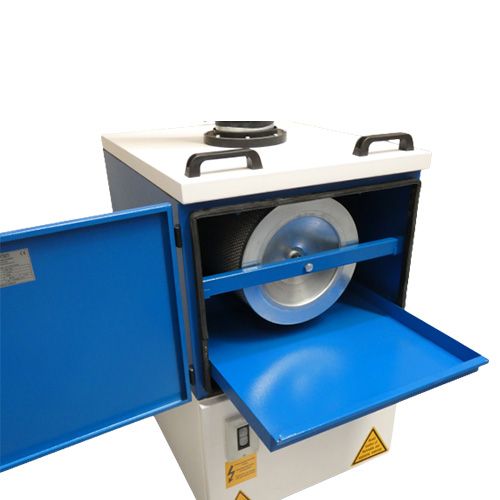

• Unique mechanism The special equipment used in the joints of the acrobat arm with internal mechanism prevents metal fatigue and protects the integrity of the arm l • Filter cleaning door provides easy and safe access to the cartridge filter.
• Cartridge filter, 29m² surface and nanofiber structure provides very high filtration efficiency and long life.
• Suction hood catches the particles with its large structure which is lightweight and durable.
• Unique patented dust collection system Thanks to the dust collection bin, the cartridge filter life is extended meaning safer dust removal is achieved and dust can be discharged even when the machine is running.

Specifications:
Input power: 220V 1Ph 50Hz
Motor size: 1.1kW
Maximum Air Flow: 3000m³ per hour
Air Flow at Suction Point: 1600m³ per hour
Area of Filter Cartridge: 14.5 m²
Filter Cleaning: Manual
Arm/s: Pipe type, external support, 3m long
Dimensions (mm): 780L x 600W x 1000H
Weight (kg): 100

Details

  • Brand:
    AllClear
  • Unit/Pack:
    EA
  • Pack Qty:
    1
