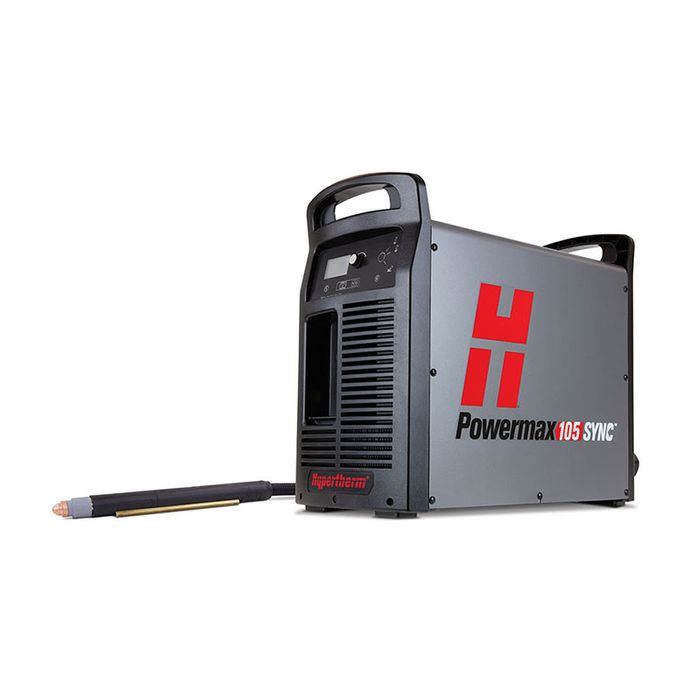

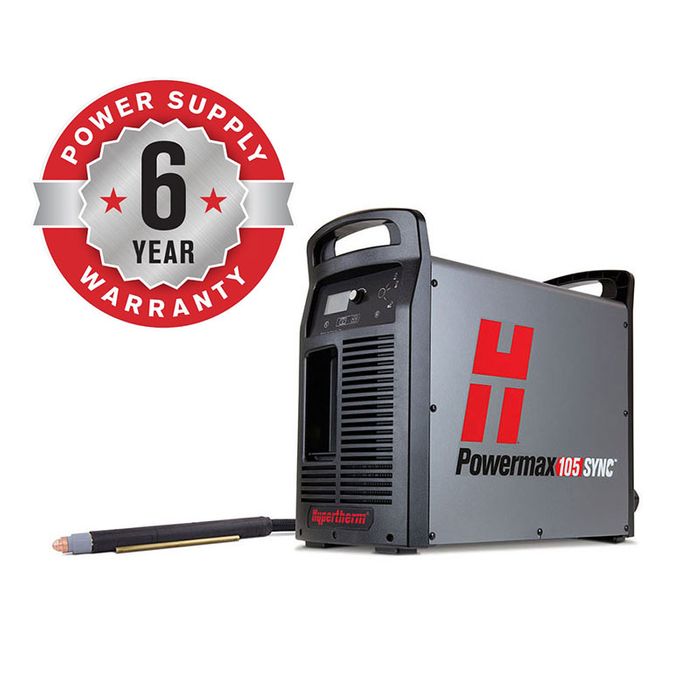

Hypertherm Powermax 105 SYNC with 180° Torch

Stock Code:
059682
Contact Us For Price
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

The Hypertherm Powermax105 SYNC™ is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for cutting and gouging up to 32 mm (1-1/4″) and maximises productivity through reductions in downtime, optimised cut quality performance and streamlined consumable inventory management.

Package includes 180 degree machine torch with 7.6m (25’) lead.

Key features:
• Easy to identify single-piece cartridge consumables are colour coded by process to eliminate parts mix-up and simplify consumable inventory management.
• Time-saving torch controls allow the operator to adjust the amperage on the fly and change consumables and applications without returning to the power supply.
• New SmartSYNC torches with the Hypertherm cartridge automatically set the correct amperage and operating mode, eliminating setup errors.
• Tackle a wide range of jobs with easily interchangeable torch styles and application-specific Hypertherm cartridge consumables for various types of cutting and gouging.
• End of life detection lets the operator know when it’s time to change the cartridge.
• Advanced cartridge consumable design provides up to twice the life for hand cutting and improved quality over life in mechanised setups compared to standard consumables.

Specifications:
• Input voltages: 200–600 V, 3-PH, 50/60 Hz
• Kilowatt output: 16.8 kW
• Input current: 200/208/240/480/600 V, 3-PH 58/56/49/25/22 A @ 16.8 kW
• Output current: 30–105 A
• Rated output voltage: 160 VDC
• Duty cycle: 70% @ 105 A, 240 V, 3-PH; 80% @ 105 A, 480–600 V, 3-PH; 100% @ 94 A, 480–600 V, 3-PH; 100% @ 88 A, 240 V, 3-PH
• Open circuit voltage (OCV): 300 VDC
• Dimensions with handles: 592 mm D; 274 mm W; 508 mm H
• Weight w/7.6 m (25′) torch: 45.3kg
• Gas supply: Clean, dry, oil-free air or nitrogen
• Optimum inlet gas pressure: 7.6–8.3 bar
• Minimum inlet gas pressure: 5.5 bar
• Recommended inlet gas flow rate: Cutting: 260 l/min @ 5.9 bar; Gouging: 260 l/min @ 4.8 bar
• Input power cable length: 3m
• Power supply type: Inverter – IGBT
• Engine drive requirement: 30 kW for full 105 A output
• Certifications: CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. UKCA – Great Britain
• Warranty: Power supplies have a 3-year warranty and torches a 1-year warranty

Details

  • Brand:
    Hypertherm
  • Web Type:
    Hypertherm Machines
  • Unit/Pack:
    EA
  • Pack Qty:
    1
