Hypertherm Powermax 85 SYNC with 180° Torch

Stock Code:
087202
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

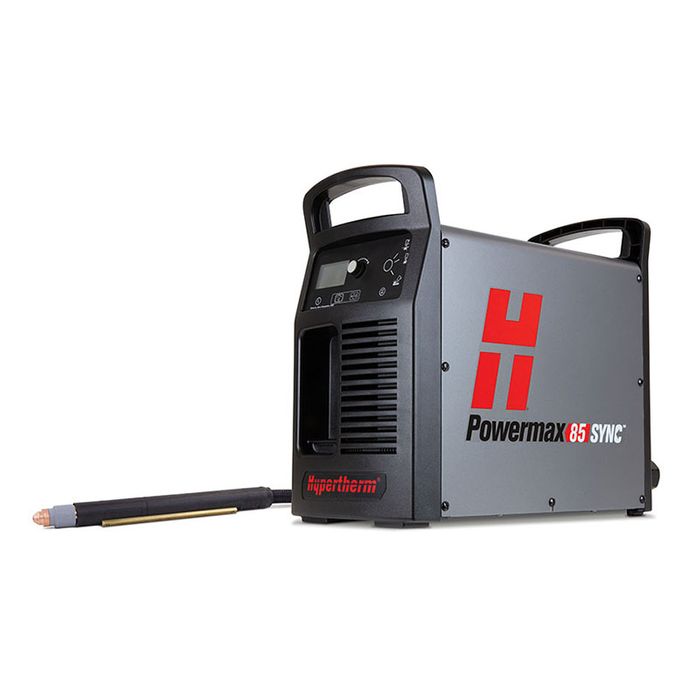

The Hypertherm Powermax85 SYNC™ is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for cutting and gouging up to 25 mm (1″) and maximises productivity through reductions in downtime, optimised cut quality performance and streamlined consumable inventory management.

Package includes 180 degree machine torch with 7.6m (25’) lead.

Key features:
• Easy to identify single-piece cartridge consumables are colour coded by process to eliminate parts mix-up and simplify consumable inventory management.
• Time-saving torch controls allow the operator to adjust the amperage on the fly and change consumables and applications without returning to the power supply.
• New SmartSYNC torches with the Hypertherm cartridge automatically set the correct amperage and operating mode, eliminating setup errors.
• Tackle a wide range of jobs with easily interchangeable torch styles and application-specific Hypertherm cartridge consumables for various types of cutting and gouging.
• End of life detection lets the operator know when it’s time to change the cartridge.
• Advanced cartridge consumable design provides up to twice the life for hand cutting and improved quality over life in mechanised setups compared to standard consumables.

Specifications:
• Input voltages: 200–600 V, 3-PH, 50/60 Hz
• Kilowatt output: 12.2 kW
• Input current: 200/208/240/480, 1-PH 70/68/58/29 A @ 12.2 kW; 200/208/240/480/600 V, 3-PH 42/40/35/18/17 A @ 12.2 KW
• Output current: 25–85 A
• Rated output voltage: 143 VDC
• Duty cycle: 60% @ 85 A, 230–600 V, 3-PH; 60% @ 85 A, 480 V, 1-PH; 50% @ 85 A 240 V, 1-PH; 50% @ 85 A, 200–208 V, 3-PH; 40% @ 85 A, 200–208 V, 1-PH; 100% @ 66 A, 230–600 V, 1/3-PH
• Open circuit voltage (OCV): 305 VDC
• Dimensions with handles: 483 mm D; 233 mm W; 430 mm H (19″ D; 9.2″ W; 17″ H)
• Weight w/7.6 m (25′) torch: 32 kg
• Gas supply: Clean, dry, oil-free air or nitrogen
• Optimum inlet gas pressure: 7.6–8.3 bar
• Minimum inlet gas pressure: 5.2 bar
• Recommended inlet gas flow rate: 210 I/min @ 5.9 bar (450 scfh, 7.5 scfm @ 85 psi); Gouging: 210 I/min @ 4.8 bar (450 scfh, 7.5 scfm @ 70 psi)
• Input power cable length: 3m
• Power supply type: Inverter – IGBT
• Engine drive requirement: 20 kW for full 85 A output
• Certifications: CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. UKCA – Great Britain
• Warranty: Power supplies have a 3-year warranty and torches a 1-year warranty

Details

  • Brand:
    Hypertherm
  • Web Type:
    Hypertherm Machines
  • Unit/Pack:
    EA
  • Pack Qty:
    1
