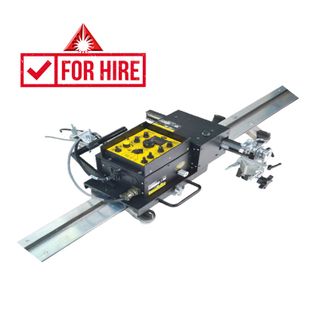

Bug-O Modular Drive System 240V

Stock Code:
MDS-4202
Price:
$34,720.00 excl GST
Special order item
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

The Bug-O Modular Drive System is the only product in the industry that allows the user to configure one machine for multiple applications. The Master Drive Unit accepts several interchangeable control modules for programmable shape cutting, straight line cutting/welding, stitch welding, programmable stitch welding, arc gouging, linear weaving and pendulum weaving.

Features:
• High torque, low inertia motor
• Dedicated fail-safe brake
• Motor overload protection
• Closed loop speed control
• Closed loop position control
• Made in USA

Package includes:
1 x Master Drive Unit 240 VAC (MPD-1002)
1 x Linear Weaver (WPD-1100)
6 x R. E. On/Off Magnet (ARM-2010)
1 x H. D. Aluminum Rigid Rail 8' 2.37m (ARR-1080)
1 x H. D. Aluminum Rigid Rail 4' 1.18m (ARR-1085)
1 x Weaver Control Module (MDS-1005)
1 x Weld Contact Cable 25' 7.6m (MDS-1085-25)
1 x Handle with Cable Anchor (MPD-1035)
1 x Releasable Carriage 12" 305 mm (MPD-1065)

Available accessories:
• Remote Control Cable – Installs between the Master Drive Unit and the Control Module, allowing the operator to perform work in confined areas where it would be difficult to reach the controls.
• Weld Contact Cable – Provides the required connection to control a wire feeder contractor circuit from the MDS Control Module.
• Automatic Height Control System – Mounts on Master Drive Unit and includes Remote Control Cable.
• Extended Mounting Plate – Mounts to front of the carriage for use with dual cutting or welding groups, heavy duty racking, etc.
• Quick Action Manifold – Allows quick On/Off of preset torch and eliminates hose strain.
• Hose Assemblies; CIR-1010-3 – 2-Hose & MUG-1119-32 – 3-Hose.
• Universal Limit Kit – Installs between the Master Drive Unit and any of the control modules. This limit kit adds the ability to cycle between limits, stop at limit, or rapid return.
• Handle with Cable Anchor – Keeps welding cables and contact wires away from the work surface, eliminating drag.

Details

  • Brand:
    Bug-O Systems
  • Web Type:
    Bug-O Automation
  • Unit/Pack:
    EA
  • Pack Qty:
    1
