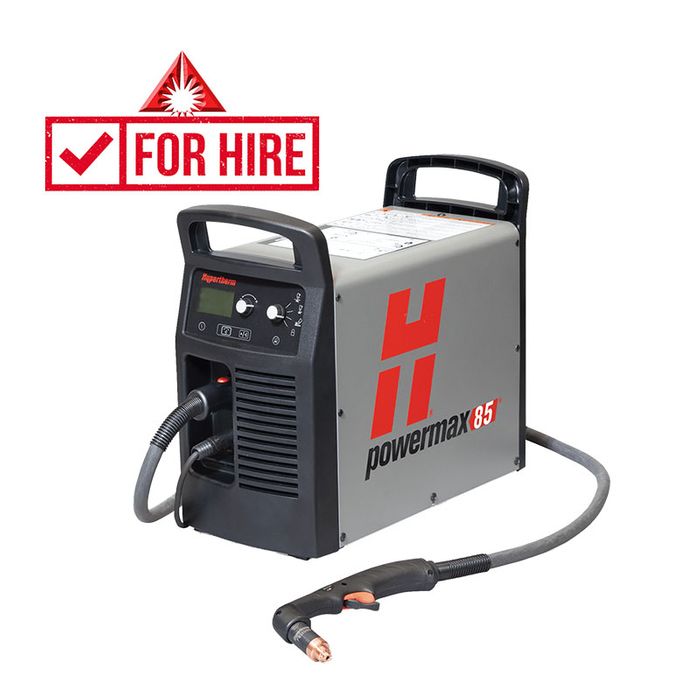

Hypertherm Powermax 85 Plasma Cutter for Hire

Stock Code:
087117-H
Contact Us For Price
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

The Hypertherm Powermax 85 is a 415V three phase machine capable of cutting 32mm metal and severing up to 38mm. Hypertherm have put all their latest technological knowledge into this machine; such as Smart Sense, which automatically adjusts the gas pressure.

Weighing 28kg this machine is a robust and capable machine for short term and long term hire packages.

This machine includes a 7.6m x 75° Duramax torch that is ideal for general plasma cutting applications.

Capacity:
• Cutting: 25mm (1") at 500mm/min (20 ipm) / 32mm (1-1/4") at 250mm/min (10 ipm)
• Severance: 38mm (1-1/2") at 125 mm/min (5 ipm)
• Pierce: 20mm (3/4")
• Gouging: 8.8kg per hour (19.5lbs)

Specifications:
Input Voltage: 400V 3Ph
Output: 25-85A
Duty Cycle: 60% @ 85A / 100% @ 66A
Weight: 28kg
Size: 500mmD x 234mmW x 455mmH
Recommended Gas: Clean, dry, oil-free Air or Nitrogen
Recommended Gas Flow/Pressure:
Cutting: 189 Lpm @ 5.6bar (81psi)
Gouging: 212 Lpm @ 4.1bar (60psi)
Engine drive Requirement: 20kW (85A output)

Minimum Hire: 7 days (1 week)

Details

  • Brand:
    Alphaweld Welderentals
  • Unit/Pack:
    EA
  • Pack Qty:
    1
