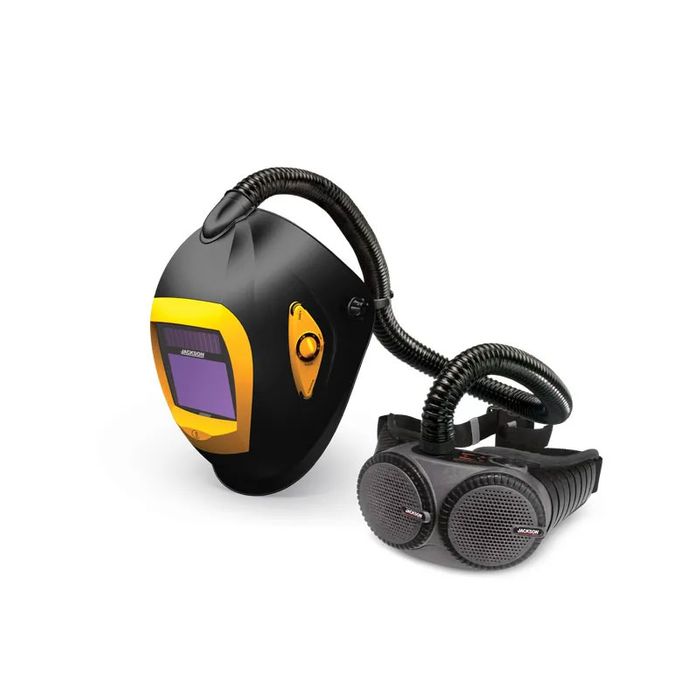

Jackson WH70 GDS Air with Airmax Elite PAPR System

Stock Code:
KC-J5225-K
Price:
$3,680.00 excl GST
Special order item
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

The Jackson WH70 Airmax is an undisputed world leader among respiratory (PAPR fresh air) welding helmets.

Why choose Jackson WH70 Airmax?
• Superior European Quality, Reliability and Design
• For Welding Professionals & Workshops that demand the best in Productivity, Safety & Comfort
• Tested & Conforms to: AS1716 (respirator system), AS1337.1 High-Impact (helmet), AS1338.1 (lens)
• 5 Year Warranty on welding lens

What's included?

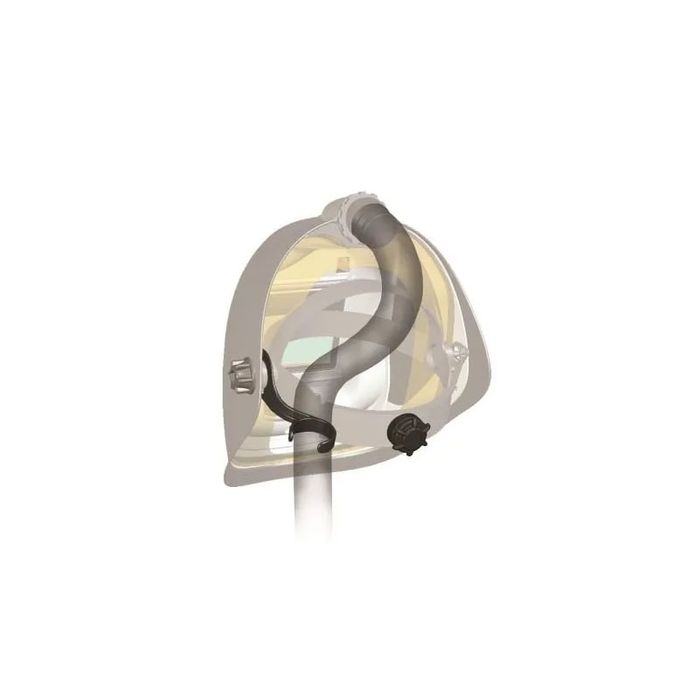

• Jackson WH70 GDS Air Helmet
• Airmax Elite Respirator System with belt, battery & charger
• Air Hose with Flameproof Cover
• Carry Bag

Applications:
• Professional & Industrial Applications
• For MIG, TIG & Stick, including Low-Amp TIG down to 1 Amp
• Popular for Gal, Aluminium, Stainless & Flux-Cored Welding, where fume concentration/hazard is especially high
• Also suitable for Oxy & Plasma Cutting (with shade 6-8 mode)

WH70 GDS Helmet features:
• Leading 'Balder' Auto-Darkening Technology - world first 1/1/1/1 Optical Rating
• Incredibly Clear Vision, before, during & after welding
• Low-Profile External Controls, with Shade, Sensitivity, Delay & Grind Mode
• Dual Shade Range: 6-8 for Plasma/Oxy & 9-13 for Welding

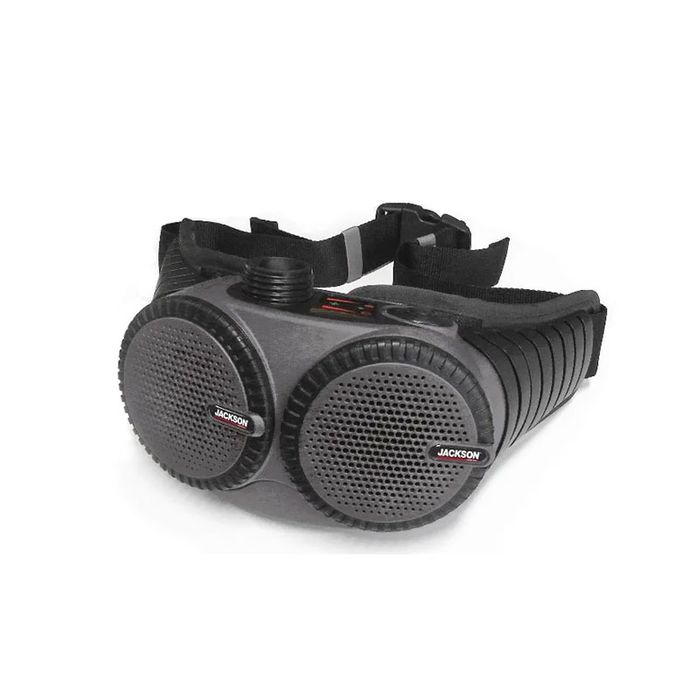

Airmax Respirator features:
• Slim Low-Profile & Lightweight Design
• Dual Airflow Settings - Simple control with only one button
• Automatic airflow control ensures Constant Flow Rate regardless of the level of filter clogging or battery charge
• Audio, Visual and Vibrating Alarms indicate when battery charge &/or filter replacement is required
• Heavy Duty Li-Ion Battery - Charging time less than 3 hours, Operating time up to 10 hours
• Unique Dual-Filter System

Specifications:
Switching Speed: 0.15 ms @ 23oc
TIG Optimised: Suitable for low amp TIG down to 1A
Power Supply: Primary Power: Solar, Back-up power: Lithium battery.
On / Off: Ready to use at any time, no switching required
Inactive Shade (Grind/Off ): Shade 4
Active Shade (Weld): Externally Adjustable Dual Shade Range 6-8 (Oxy & Plasma) / 9 -13 (Welding) Sensitivity: Adjustable Low – High
Delay: Adjustable 0.1 – 1second
Grind Mode: Switchable On/Off
Weight: Standard Version: 625g, Respiratory Version: 790g (including air duct, not including hose)
Viewing Area: 96 x 68.5mm
Magnification Lens Holder: 108x51mm lenses
Temperature Range: Operating -10° to +60°c / Storage -10° to +40°c

Details

  • Brand:
    Jackson
  • Web Type:
    Jackson Welding Helmets
  • Unit/Pack:
    EA
  • Pack Qty:
    1
