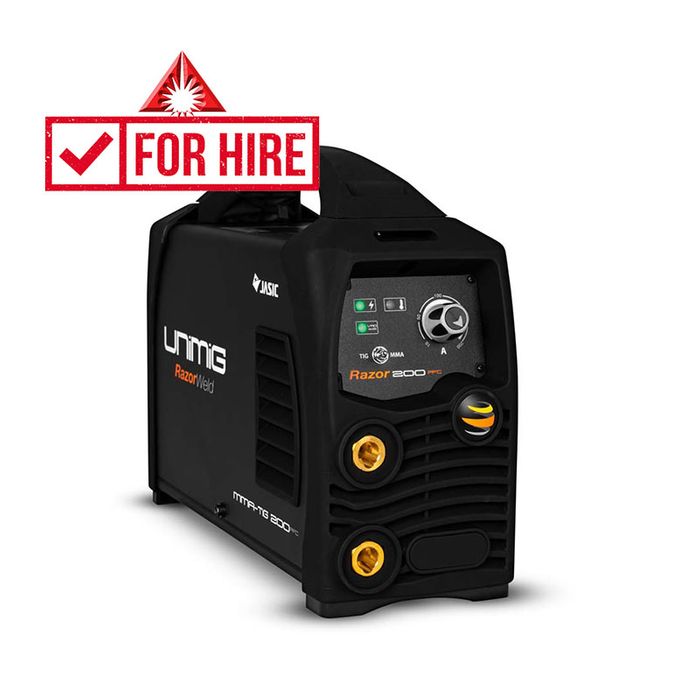

Unimig RAZOR Arc 200 PFC Stick/TIG Welder Mine Spec for Hire

Stock Code:
KUMJRRW200CA-H
Contact Us For Price
Stock Level:
Please contact us for stock availability
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

The Unimig Razor Arc 200 PFC is the perfect stick and TIG welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is designed to be taken between the workshop and worksites. Connecting a 17V TIG Torch provides DC Lift Arc TIG functionality.

The Razor™ Arc 200 PFC features Power Factor Correction (PFC) for maximum electrical efficiency.

Features:
• Fitted with VRD
• Hot start (improves electrode starting)
• Arc Force (boosts current to prevent electrode extinguishing)
• Excellent arc stability with all electrodes
• Lift Arc ignition (prevents tungsten sticking during arc ignition)
• Ultra smooth DC TIG welding current
• Thermal overload protection
• IP21S rating
• Generator compatible
• Auto-compensation for voltage fluctuation

Specifications:
Primary Input Voltage: 240V 15A 1ph
Ieff Current: 12A
Rated Output Current: 200A/28V MMA
Range of Output Current: 10-200A
No Load Voltage: 9V
Protection Class: IP21S
Duty Cycle:
MMA: 30% @ 200A
TIG DC: 45% @ 200A
Dimensions (mm): 365L x 227W x 135H
Weight (kg): 6.5

Minimum Hire: 7 days (1 week)

Details

  • Brand:
    Alphaweld Welderentals
  • Unit/Pack:
    EA
  • Pack Qty:
    1
