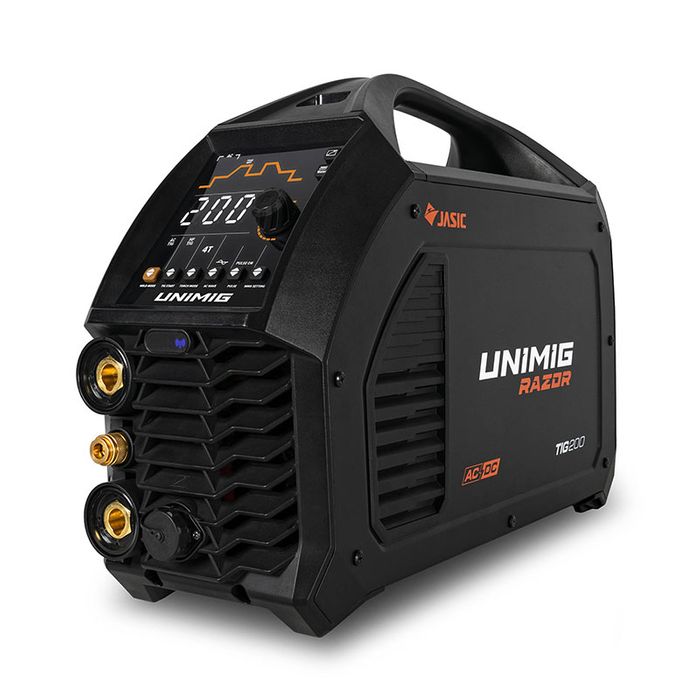

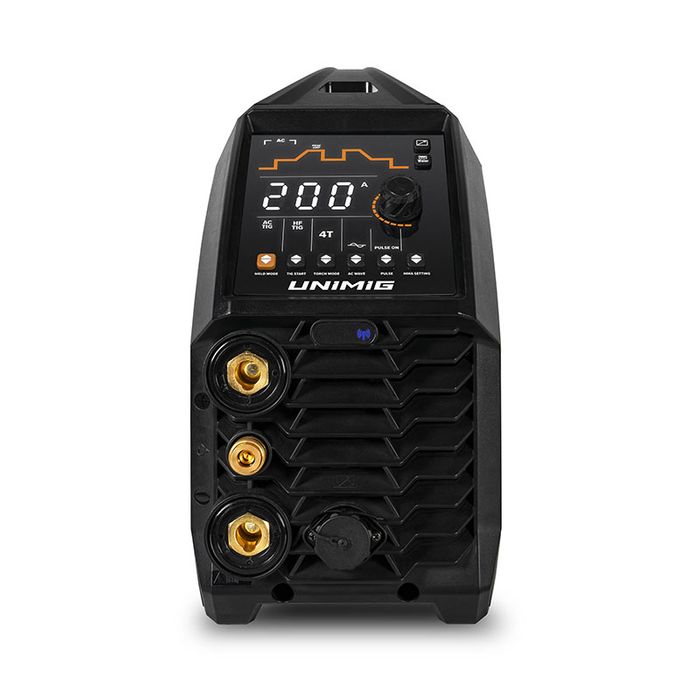

Unimig RAZOR TIG 200 AC/DC Welder

Stock Code:
U12002K
Price:
$2,197.00 excl GST
Stock Level:
Currently in Stock
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

Achieve incredible results from start to finish with the Unimig RAZOR TIG 200 AC/DC Welder.

Key features & benefits:
• Effortlessly weld any metal with the high-frequency AC/DC TIG
• The ultimate combination of AC and DC available with Mixed Arc settings
• Switch your AC welds to suit your needs with the choice of four waveforms

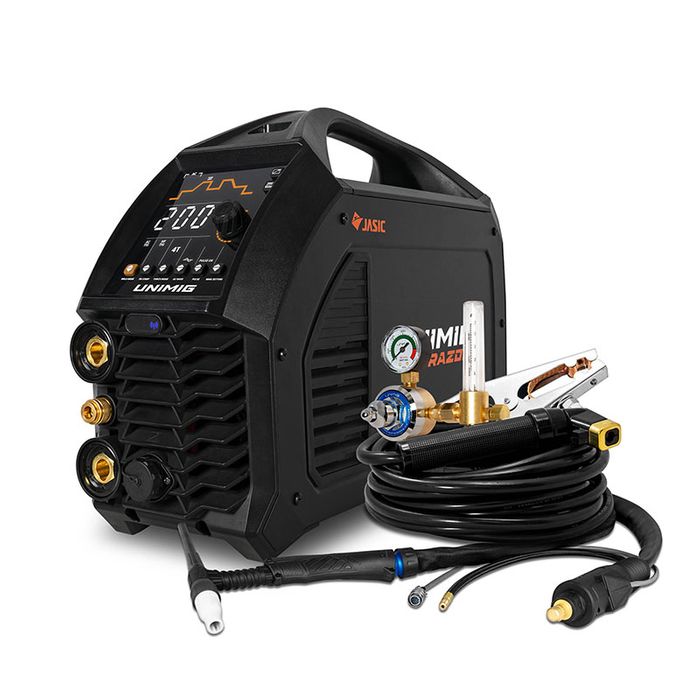

Package includes:
• Unimig RAZOR TIG 200 AC/DC Welder
• 8m T2 TIG Torch
• 4m Twist Lock Electrode Holder
• 4m 300 Amp Earth Clamp & Lead
• Argon Flowmeter Regulator
• 1.8m Gas Hose with fittings
• Operating Manual

Machine Specifications:
Primary Input Voltage: 240V Single Phase
Supply Plug: 10 Amp
Ieff (A): 9.8
Rated Output: 5-200A
No Load Voltage (V): 65
Protection Class: IP23S
Insulation Class: H
Minimum Generator (Kva): 9.0
Dinse Connector: 35/50
Standard: AS/NZ60974-1
Suitable Material:
TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
MMA: Mild Steel, Stainless Steel, Cast Iron
Warranty (Years): 5

TIG Specifications:
TIG Function Type: AC/DC HF TIG & AC/DC Pulse
TIG Welding Current Range: 5-200A
TIG Duty Cycle @ 40°C; 20% @ 200A, 60% @ 115A, 100% @ 90A
TIG Welding Thickness Range: 1-8mm

Stick Specifications:
Stick Welding Current Range: 20-160a
Stick Duty Cycle @ 40°C; 15% @ 160A, 60% @ 80A, 100% @ 62A
Stick Electrode Range: 2.5-4.0mm
Stick Welding Thickness Range: 2-10mm

Size & Weight:
Dimensions (mm): 500 x 170 x 340mm
Weight (kg): 11.7

Machine Features:
VRD: Yes
Foot Control Connection: Yes

Details

  • Brand:
    Unimig
  • Web Type:
    Unimig Machines
  • Unit/Pack:
    EA
  • Pack Qty:
    1
