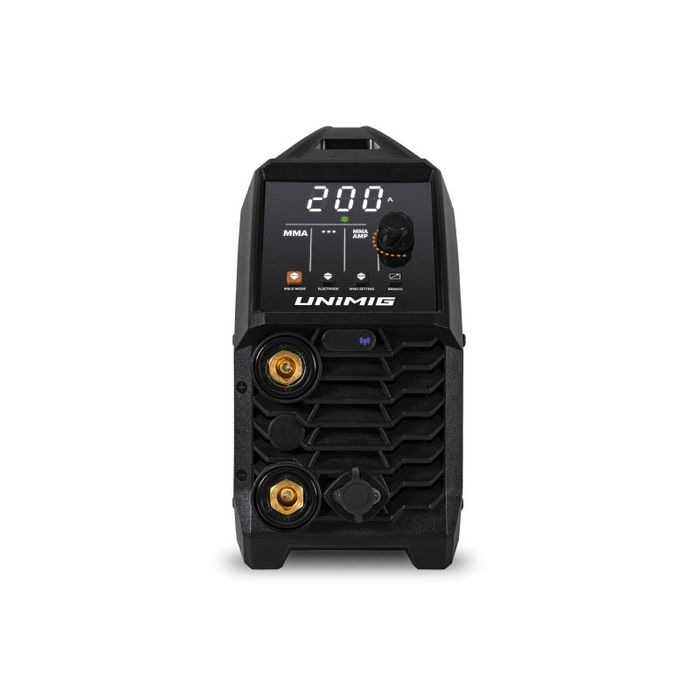

Unimig RAZOR ARC 200 PFC Stick Welder Mine Spec

Stock Code:
U13003K
Price:
$933.00 excl GST
Stock Level:
Currently in Stock
Qty Quote or Package Deal
Add to Favourites

Weighing at just 7.6kg, the Unimig RAZOR ARC 200 PFC Stick Welder is lightweight and portable and ready to go anywhere you need it.

It features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.

Package includes

• Unimig RAZOR ARC 200 PFC Stick Welder
• 4m Electrode Holder
• 4m 300 AMP Earth Clamp
• 15A Plug Fitted

Key Features

HD Backlit Interface
This next generation interface panel is bright and easy to read in any environment.

Power Factor Correction (PFC)
PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, and PFC is also designed to be generator friendly.

DC Lift Arc TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.

Optional Remote Control
Upgrade your machine with a handy remote control. Both a wired and wireless controller are available.

Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.



Technical Data

Primary Input Voltage: 240V Single Phase
Supply Plug: 15 AMP
Ieff (A): 14.9
Rated Output: 20A/20.8V - 200A/28V
No Load Voltage (V): 78
Protection Class: IP23S
Insulation Class: H
Minimum Generator (kVA): 9.0
Dinse Connector: 35/50
Standard: AS/NZ60974-1
MMA Weld Material type: Mild Steel, Stainless Steel, Cast Iron
TIG Weld Material type: Mild Steel, Stainless Steel, Copper, Silicon Bronze
Warranty (Years): 5


STICK Specifications

STICK Welding Current Range: 20-200A
STICK Duty Cycle @ 40°C: 25% @ 200A; 60% @ 129A; 100% @ 100A
STICK Electrode Range: 2.5-4.0mm
STICK Welding Thickness Range: 2-12mm


TIG Specifications

TIG Function Type: DC Lift Arc
TIG Welding Current Range: 10-200A
TIG Duty Cycle @ 40°C: 25% @ 200A; 60% @ 129A; 100% @ 100A
TIG Welding Thickness Range: 1-8mm


Size & Weight

Dimensions (mm): 413 x 150 x 311mm
Weight (kg): 7.6kg
