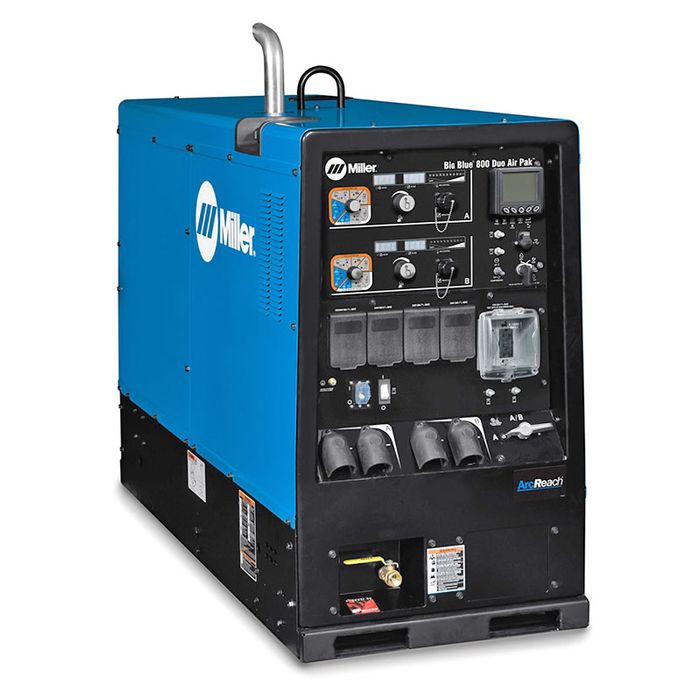

Miller Big Blue 800X Duo Air Pak Diesel Welder

Stock Code:
MR907763-2
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites

Downloads

Description

The Miller Big Blue 800 Duo Air Pak is the most powerful T4F diesel welder/auxiliary power converter/air compressor in the industry. It offers robust output for welding and power creation, and is ideal for dual-operator applications on labour intensive job sites, or job sites with limited space.

Features:
• Heavy-Duty Low-Speed DEUTZ TD2.9 L4 T4F Industrial Diesel Engine
• Multi-Arc Welding: One dependable engine - two independent arcs with up to 400 amps each (or 800 amps for a single operator)
• ArcReach® Technology - Exclusive ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder
• Electronic Engine Display - Electronic engine display simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, air pressure and engine RPMs
• Increased Efficiency - More arcs and better fuel economy equal increased profits for your business
• Air Compressor - Ingersoll Rand: Ultra-reliable industrial rotary screw air compressor with 30,000-hour life expectancy

Specifications:
Processes: Air Carbon Arc Cutting & Gouging, Flux Cored, MIG, Stick & TIG DC
Rated Output: 400 A at 36V, 100% duty cycle, 700A at 44V 100% Duty cycle, 400A at 34 V 100% duty cycle
Output Range: 20-400A
Generator Power: 3PH Peak 27,000W, Continuous: 20,000W, 1PH Peak 5,500W, 4,000W Continuous
Engine Type: Deutz
Fuel: Diesel
Horsepower: 67.7hp @ 1,350rpm (Idle)
Dimensions (mm): 1194H x 724W x 1765L
Weight (Kg): 968.5

Details

  • Brand:
    Miller
  • Unit/Pack:
    EA
  • Pack Qty:
    1
