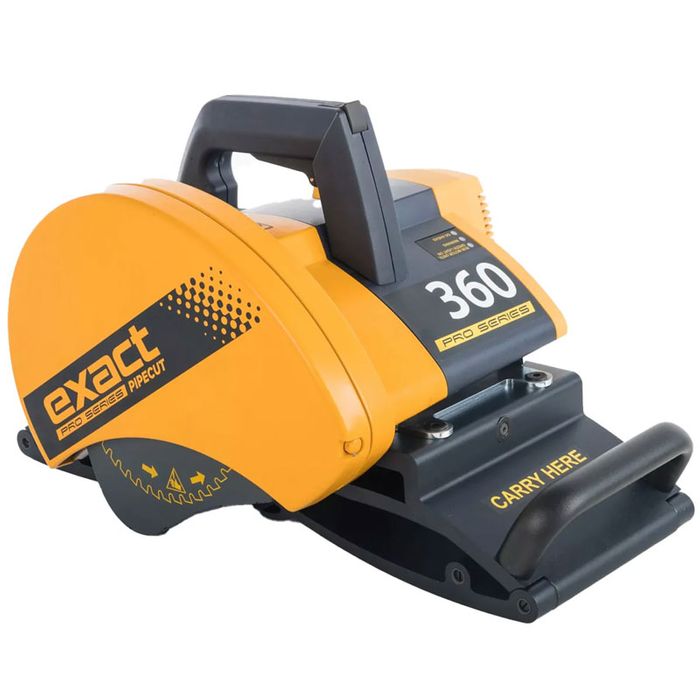

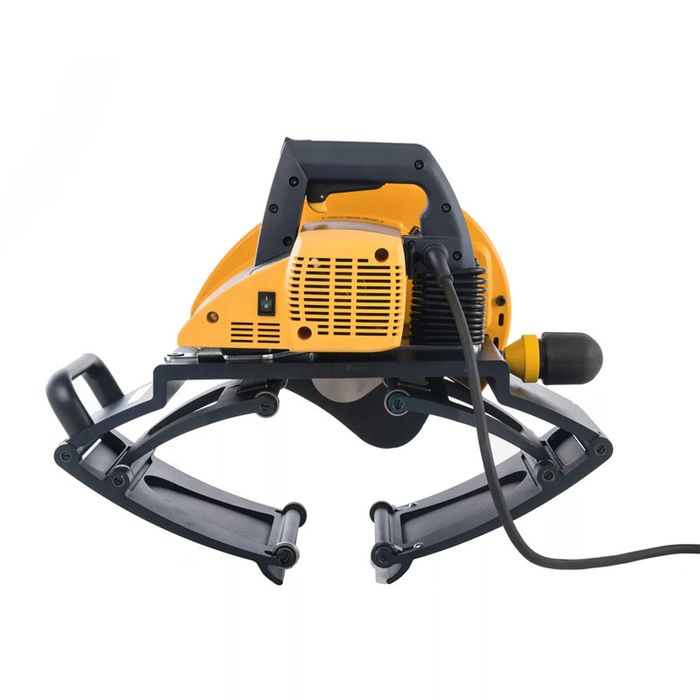

Exactcut 360PRO Pipe Cutter 75-360mm

Stock Code:
PEC360PRO
Price:
$11,617.67 excl GST

Description

The Exact PipeCut 360 Pro Series pipe cutter is intended for heavy-duty pipe cutting. Suitable for all pipe materials. Portable and easily transportable.

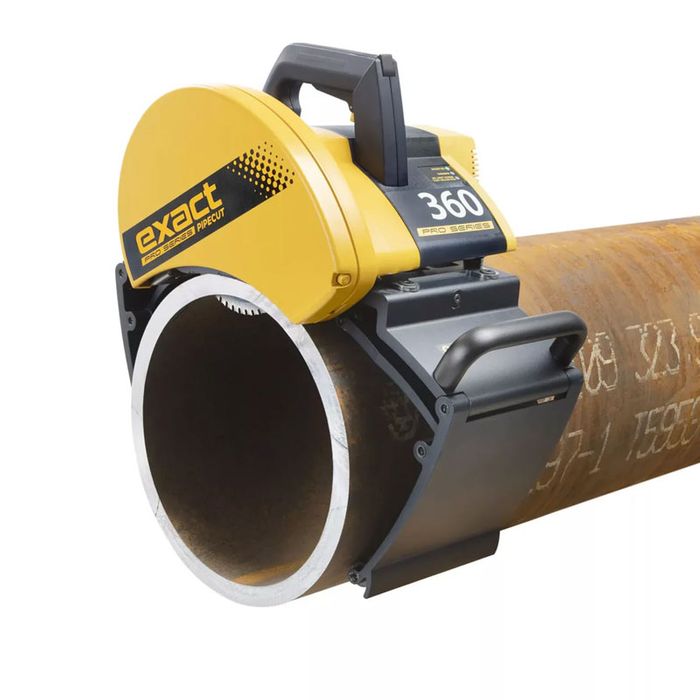

The set-up is fast and simple. The clean and user-friendly design makes it fast to mount on pipe sizes 75 mm - 360 mm (3"- 14") and up with a maximum wall thickness of 20 mm (0.8") steel, 50 mm (2") plastics.

Exact PipeCut 360 Pro Series is the first and most popular pipe saw of the Pro Series product family. The machine is intended for professionals that appreciate easiness, fast cutting and accurate, straight cutting results. The machine creates only minimum amount of sparks and all in all is an extremely safe tool to use thanks to the user-friendly design.

Features & Benefits:
• Much stronger 2500W 230V/2200W 110V motor
• Electronics protecting the motor from overload and traffic lights" guiding the operator
• Laser indicator for precise cutting
• Improved adjustment mechanism for straight cutting
• Professional quality - Made in EU
• Cuts steel pipes with wall thickness up to 20/12mm

Pack includes:
• Exact PipeCut 360 Pro Series pipe saw
• Pipe Supports 1 x Double, 2 x Small
• Operating instructions
• Hex socket key 5 mm and 2 mm fitted to the machine
• TCT 165 blade fitted to the machine

Specifications:
Pipe OD: 75mm – 360mm (3”- 14”)
Max. Wall Thickness: 20mm (0.8”) steel / 45mm (2”) plastic
Pipe Material: Cast iron / Copper / Ductile (nodular cast iron) / Plastic / Stainless Steel / Steel
Laser for Cutting Point Definition: Yes
Overheat Control: Yes
No-Load Speed: I=1900 r/min / II=2885 r/min
Blade Diameter: 140mm (5.51”) / 165mm (6.5") / 180mm (7.2") / 190mm (7.6")
Mounting Bore: 62mm (2.44”)
Loading Capacity of Supports: 465kg (3 supports)
Weight: 17.5kg

Details

  • Brand:
    Exactcut
  • Web Type:
    Pipe Cutters
  • Unit/Pack:
    EA
  • Pack Qty:
    1
