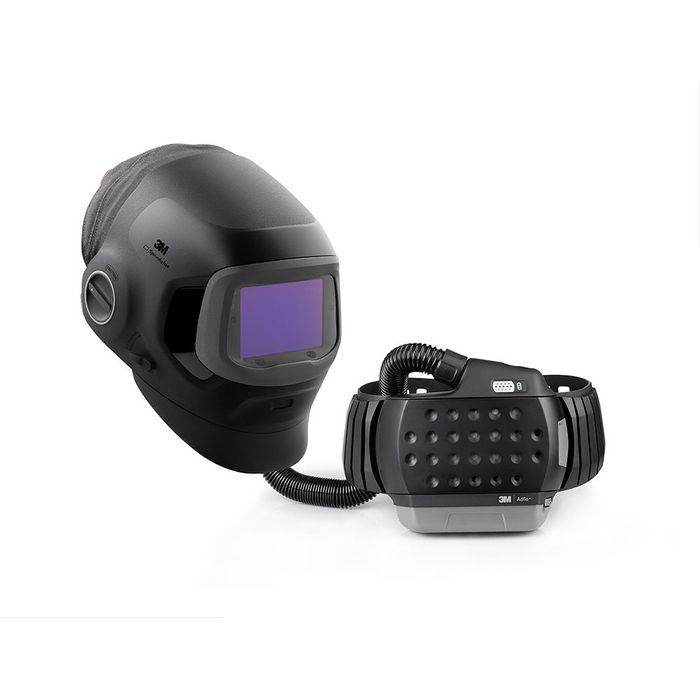

3M Speedglas G5-03VC Pro Air with Heavy-Duty Adflo PAPR
The ALL-NEW 3M™ Speedglas™ G5-03 VC Pro Air Welding Helmet with Heavy-Duty Adflo PAPR combines powerful welding respiratory protection with cutting-edge Speedglas True-View welding lens technology. With new TAP functionality, Variable Colour technology in the dark state, extra-large viewing area with SideWindows and an extra-dark shade 14 for high-amperage welding, the G5-03 Pro Air is built for heavy-duty welding.
PRODUCT FEATURES
Welding PPE Manufactured in Sweden
All Speedglas welding helmets and auto-darkening lenses are made in Sweden, with market-leading technology and new-to-world features.
Effective Welding Fume Protection
With an advanced comfort face seal that follows the contours of the helmet and face, the G5-03 Pro Air welding helmet creates an effective positive pressure respiratory seal. Filtered air is delivered directly to the breathing zone of the welder, for maximum comfort and protection.
Variable Colour Welding Lens
Designed for greater contrast, visibility and comfort, the G5-03VC welding lens lets you select between cool, warm and natural colour tones in the dark state. This feature provides increased versatility when switching between different welding applications and lighting conditions.
Exclusive Speedglas TAP Technology
New TAP function allows you to seamlessly switch between welding, grinding and cutting modes by tapping the exterior of your welding helmet. This allows you to change between welding lens settings while keeping your respiratory, eye, and face protection in place.
Heavy-Duty Welding Lens
Designed for welders working at high amperages, the G5-03 VC auto welding lens offers an extra dark shade 14 when performing heavy-duty welding applications.
Extra-Large Viewing Area with SideWindows
Weld with enhanced vision, colour and clarity! A huge 73 x 109mm welding lens provides expansive views of your weld pool, while Speedglas SideWindows offer enhanced peripheral vision - giving you one of the largest welding lens viewing areas on the market!
Bluetooth® Memory Modes
Adjust your welding lens settings from the palm of your hand, with new Bluetooth® lens technology. Welders can switch between dark shades, variable colour tones and program pre-set memory modes, via the 3M Connected Equipment app.
Customisable Head Harness
The G5-03 Pro head harness is completely adjustable for a personalised fit. Designed for extended use in hard-wearing environments, the head harness evenly distributes weight to avoid fatigue and pressure points. An extra-large back pad provides additional support at the rear of the harness.
Weld, Cut, Grind & Tack
Featuring a light shade of 3 and dark shades 5, 8-14, the G5-03 VC lens offers excellent versatility and is suitable for all common welding applications including MIG/MAG, MMAW, and TIG welding. New TAP technology allows you to easily switch between welding, cutting and grinding modes by simply tapping the outside of the helmet.
True-View Welding Lens
Speedglas True View lens technology offers market-leading colour, contrast and visibility, giving you greater control over your weld pool.
Reliable Switching and Arc Detection
The G5-03 VC auto-darkening lens offers reliable switching and can detect a welding arc as low as 1 amp, thanks to its advanced photo sensors. With Auto-On technology, your welding helmet is instantly ready to weld as soon as you pick it up, retaining your last used welding lens settings.
Task Light Designed for Welding
An optional helmet-mounted task light is available, for welders working in low-light environments. Powered by the Adflo PAPR battery, the task light casts a wide light on your workspace, with even light distribution and adjustable light intensity.
Extended Head & Neck Protectors
Customise your welding protection to suit your environment. The G5-03 Pro Air is compatible with a range of leather and fabric head and neck covers, to provide heavy-duty protection against splatter and sparks.
AS/NZ Standards Compliant
Compliant with Australian and New Zealand Standard AS/NZS1716 (respiratory protection), AS/NZS1337.1 (high impact face protection) & AS/NZS1338.1 (eye protection).
THE HEAVY DUTY ADFLO POWERED AIR PURIFYING RESPIRATOR (PAPR)
HD Battery with One Hour Rapid Charge
Heavy-duty welders require robust protection. To that end, the new heavy-duty Adflo battery offers a run-time of approximately 12 hours depending on conditions (4 hours longer than the standard Adflo battery). Rapid charge functionality means the battery can charge from 0-80% in just one hour, meaning you're ready to weld sooner!
Industry-Leading Respiratory Protection
Since its launch, the 3M™ Adflo™ powered air respirator has become synonymous with welders' respiratory protection. The system is designed to meet the specific needs of welders.
High Level of Protection
The Adflo respirator complies with Australian and New Zealand Standard AS/NZS 1716 for powered air respirators and offers a Required Minimum Protection Factor (RMPF) of 50 for mechanically and thermally generated particles.
Intuitive Airflow Design
The unique airflow design ensures that filtered air is distributed uniformly across the welder’s entire breathing zone. The advanced turbo unit maintains a constant airflow rate, while the diffuser evenly disperses the air for optimal comfort.
Mobile, Light Weight Welding Respirator
Powered air respiratory protection that goes where you go. The Adflo welding PAPR is slim, lightweight and belt-mounted, allowing full mobility as you move around the workplace. The new Li-ion Adflo respirator is over 15% lighter than the older style version with Ni-MH (black) battery.
Powerful Protection Against Welding Fume & Gases
The Adflo PAPR offers effective particulate protection against welding fume, and is also available with stackable gas filters if required. Battery and filter indicators assist the user in knowing when charging and filter changes are required.
Self-Adjusting Breathing Hose
Designed for simple connection, the quick-release breathing tube allows for one handed connection and release. The hose is self-adjusting, meaning it is always kept close to the welders back and away from getting caught on surrounding objects.
Increased Airflow for Hot, Humid Jobs
Regardless of the battery charge or the particle loading of the filter, the intelligent turbo unit maintains a steady airflow rate of 170 litres per minute. However, for welding in hot and humid environments, you can raise the airflow to 200 litres per minute to decrease fatigue and improve comfort.
SPECIFICATIONS
Relevant Welding Helmet Standards: Eye Protection - AS/NZS1338.1, Face Protection - AS/NZS1337.1 (High Impact), Respiratory Protection - AS/NZS1716
Speedglas TrueView Welding Lens: Yes
Variable Colour Technology: Yes
STICK Welding: Yes
MIG Welding: Yes
TIG Welding: Yes (industry leading detection down to 1 Amp)
Grinding Feature: TAP Technology (shade 3)
Memory Mode (Set-and-Forget): Yes
SideWindow Peripheral Vision: Yes
Hidden Arc Mode: Yes
Welding Lens Viewing area: 73 x 109mm + SideWindows
Variable Dark Shades: Shade 5, 8-14
Light State: TrueView Shade 3
UV Protection: Shade 14 (permanent)
Switching time, light-dark: 0.1 ms (+23 C)
Delay (switching time, dark-light): 50-1300 ms
Bluetooth Enabled: Yes
Optional Task Light: Yes
Comfort Exhaust Vents: No (positive pressure seal for powered air)
Head Harness: New G5-03 Pro Head Harness
Safety Helmet: No
Required minimum protection factor: 50
Air flow Level: 170 & 200 l/min
Adjustable Air Control: Yes
Adflo Battery Run Time: 12 hours
Adflo Battery Charge Time: 1 hour rapid charge (80% capacity), 5.5 hours complete
Welding Helmet Model: Speedglas G5-03 Pro Air
