Foxheat 10.8kW Infrared Preheater

Stock Code:
FHT5722
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites


The Foxheat 10.8kW Infrared Preheater is an economical and highly efficient infrared, radiant heater that provides a radiant heat source for pre-heating metal fabrications. The heater is ideal for preheat of large welded constructions including steam drums, vessels and rotating equipment and are an alternative to the range of Gas Surface Combustion Burners (SCB).

Specifically designed to replace the costly and heavy induction equipment including SCB's required to deliver preheats on vessels and large constructions, the infrared heater has an exceptionally fast heat up time and is lightweight in comparison to induction alternatives.

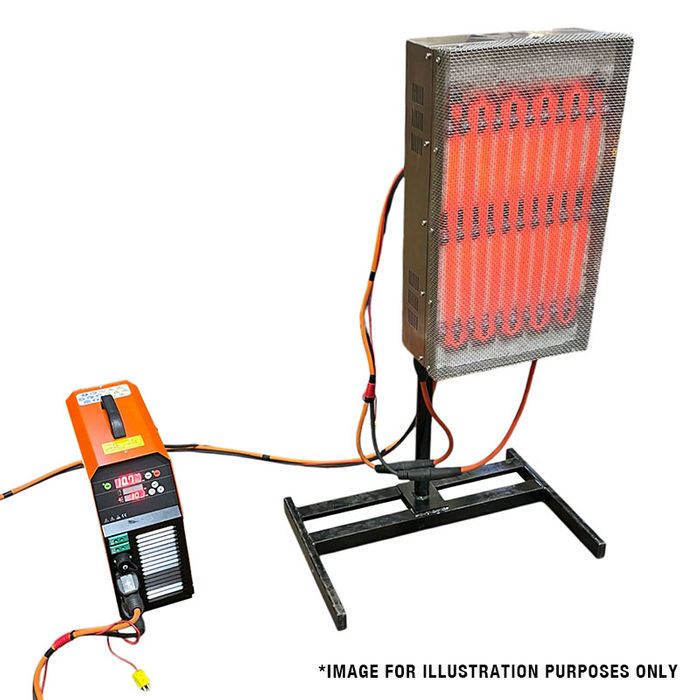

Infra-red panels can be mounted on internal or external support rigs or on separate stands as single units.

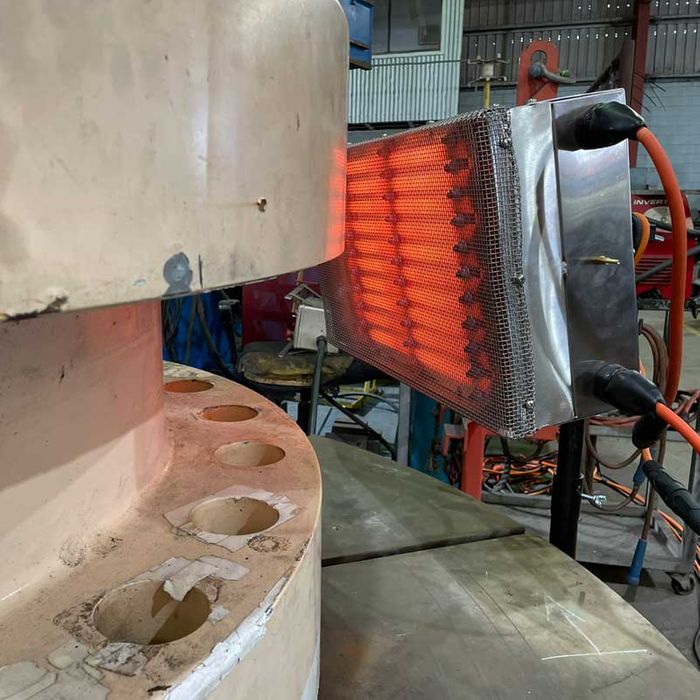

As single units the heater can be strategically positioned during the rotating operation necessary for welding circumferential seams of large heavy walled pressure vessels.

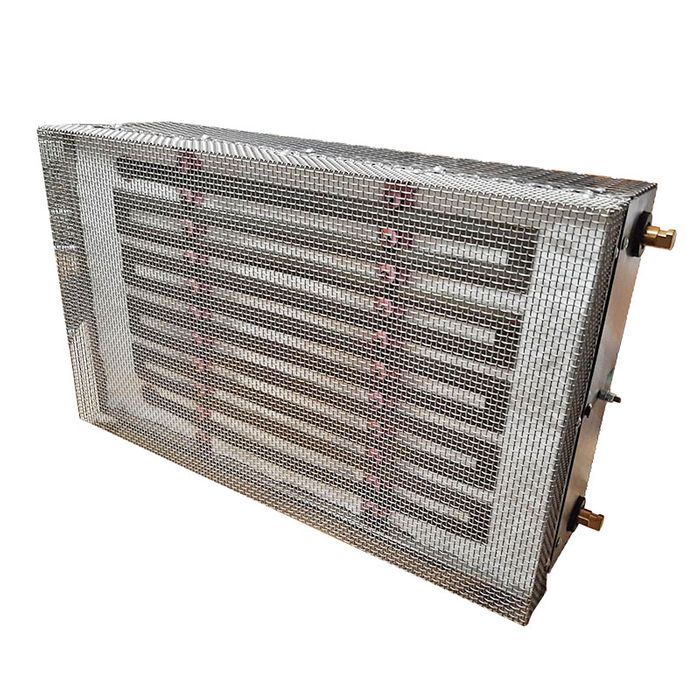

The infrared heater is rugged, lightweight and comprises of a stainless-steel container tray, a layer of silica fibre insulation and a shallow concave strip element manufactured in high temperature Kanthal.

FEATURES & BENEFITS

  • Heater capable of achieving preheating temperatures of up to 350°C
  • Rated at 60V, 180A, 10.8kW
  • The panels can be used in vertical or horizontal positions
  • Dawell 6510 Heat Treatment Units can supply and control 1 x infrared heater
    (one heater per output channel)

SPECIFICATIONS

Voltage: 60V
Current: 180A
Power: 10.8kW
Dimensions: 630mm x 370mm

Downloads

Details

  • Brand:
    Foxheat
  • Unit/Pack:
    EA
  • Pack Qty:
    1
