Lincoln LT-7 Tractor

Stock Code:
K395-1
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites

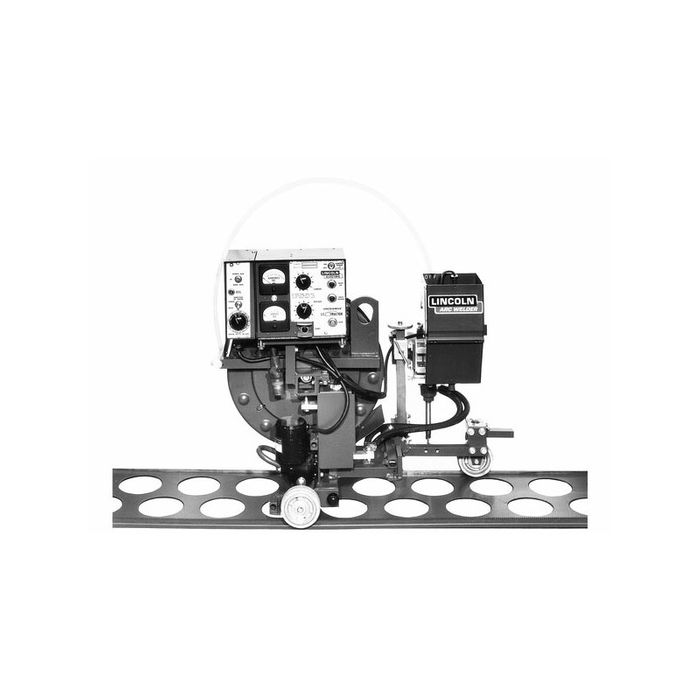

The Lincoln LT-7 Tractor is a self-propelled mechanised wire feeder designed for the submerged arc process with track system capabilities. It is self-guiding and easy to operate – only one operator is usually required. It is designed to be used with various Lincoln DC constant voltage and constant current power sources. The rugged, lightweight unit permits quick movement to the next joint. Its compact size fits through small openings and confined spaces. Butt and fillet welds can be made on heavy plate or steel as light as 12 gauge (2.5 mm).

The LT-7 Tractor is ideal for the following applications: ship and barge building, storage tank erection, bridge deck installation, beam, girder or column fabrication, and long seams on heavy weldments.

FEATURES

  • The LT-7 Tractor feeds 3/32 to 3/16 in. (2.4 to 4.8 mm) solid wires at a wire feed speed of 100 - 400 inches per minute (2.5 - 10.2 m/min).

  • Calibrated tractor drive adjusts travel speeds from 6 to 70 inches per minute (0.12 to 1.8 m/min).

  • Vertical head lift adjuster for adjusting electrical Stick-out from 1/2 in. to 5 in. (12.7 to 127.0 mm).

  • Weld angle is up to 50° from vertical on either side; drag angle is up to 30° from vertical.

  • Control box is conveniently located on the tractor (can be mounted either left or right), eliminating the need to return to the power source for routine procedure changes.

  • Exceptional tracking control and self-steering in most applications leave the operator free for quality control, joint cleaning and flux handling.

  • Welds butts, horizontal fillet and lap joints to the left or right side of the tractor frame for convenience.

  • Close mechanical alignment between wire and joint maximizes weld quality with no fixturing costs.

SPECIFICATIONS

Machines Processes: Submerged Arc (SAW)
Input Voltage: 115VAC
Input Current: 600A
Input Hertz: 50/60
Input Power: 115VAC
Typical Application: Structural Fabrication
Machines Communication Technology: Analog
Wire Feeder Supply Voltage: 115VAC
Amphenol Pins (type of connector): 9
Work Lead Connector Type: Lug
Number of driven rolls: 1 Roll
Feeder type: Automatic
Configuration: Single
Max Spool Diameter: 60lb
Max Spool Size (kg): 30
Communication Technology: Analog
UI type: Meters
Max Wire Diameter (Solid): 4.8mm
Feedhead Configuration: Single
Wire Configuration: Single
Power Source to Feeder Communication Connector Type: 9-Pin
Accesories Communication Connector Type: None
Dimensions (H x W x D): 698mm x 838mm x 356mm
Net Weight: 58.968kg
Warranty: 3 Years

Downloads

Details

  • Brand:
    Lincoln Electric
  • Web Type:
    Lincoln Automation
  • Unit/Pack:
    EA
