Lincoln Cruiser Submerged Arc Welding Tractor

Stock Code:
K3048-2
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites

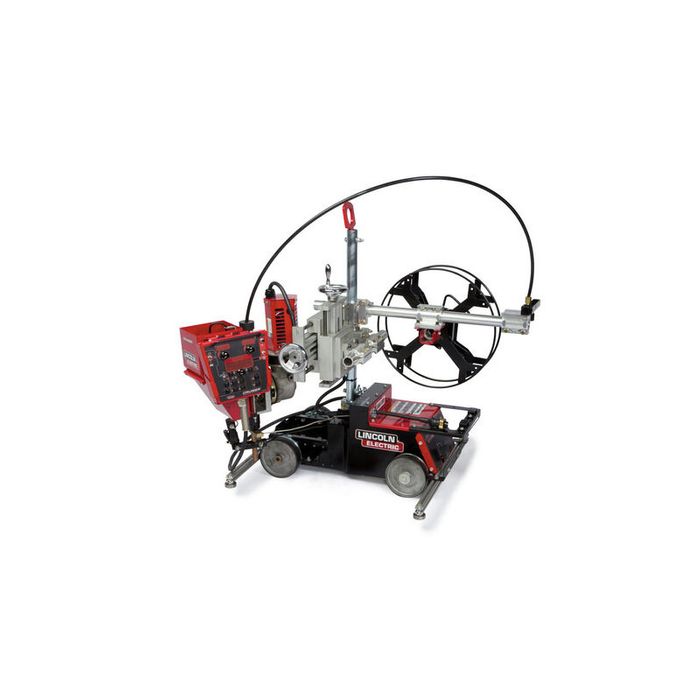

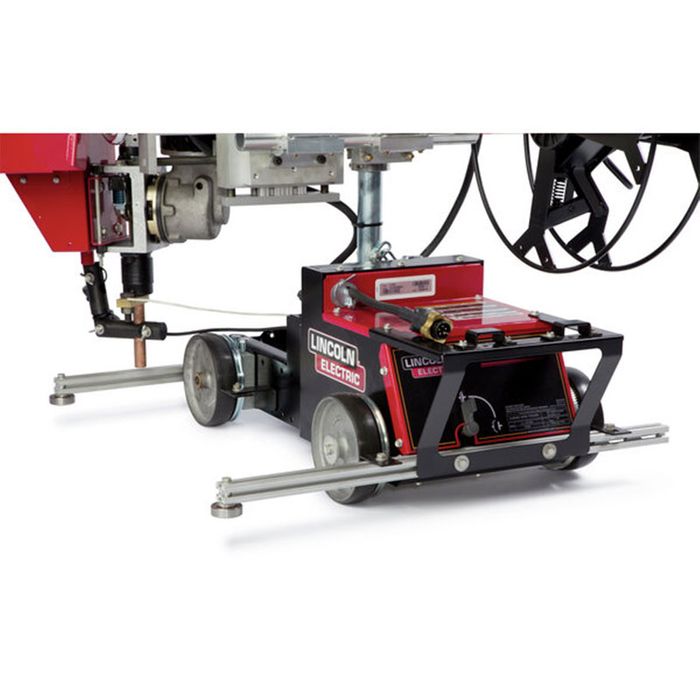

The self-propelled Lincoln Cruiser Submerged Arc Welding Tractor, paired with the Power Wave® AC/DC 1000® SD power source, can deliver deposition rates up to 13.61kg per hour. The Cruiser® SAW tractor is perfect for lengthy butt and fillet joints common to the welding application of bridge or barge decking, large tank fabrication, and shipbuilding.

FEATURES

  • Reliable Operation—Strong, rigid, and stiff, especially where you need it most. Sturdy welded base frame. A substantial steel mast stands up for daily construction site use. Simple cast wheels—equipped with high-temperature and slip-resistant rubber tires. Robust tube and clamp design—trouble-free feeding component mounting. Adjustable extended–length outriggers make it easy to guide tractor movement.
  • Advanced Control Pendant - removable, lightweight, impact-resistant aluminum user interface can be used to save procedures and apply limits and lockouts for any or all controls.
  • Common Expendable Parts - all drive rolls, nozzles, contact tips and wire straighteners are shared with the MAXsa® submerged arc wire drives.
  • Multiple Configurations - a flexible system that allows setup with or without a track and three- or four-wheel operation.

TYPICAL APPLICATIONS

Construction, Mining, Railroad Maintenance, Cross Country Pipeline, Armor Plate (Military), Automotive, Brewery, Construction & Field Erection, Dissimilar Metals, Distillery, Elevated Temperature Piping, Galvanised Steel, Gasification Plants, General Fabrication, Glass Industry, Heat Exchangers, Heavy Equipment, Heavy Fabrication, High Pressure Piping, High Temperature, High-strength Pipe, LPG & LNG Storage Vessels, Maintenance & Repair, Marine Applications, Offshore, Oil & Gas, Petrochemical, Petrochemical Industry, Petroleum Processing, Pipeline & Offshore, Piping, Power Generation, Power Plants, Pressure Vessels, Process Piping, Railcar Fabrication, Railing Industry, Repair Welding, Robotics, Robotics/ Hard Automation, Shipbuilding, Structural Fabrication and Structural Welding.

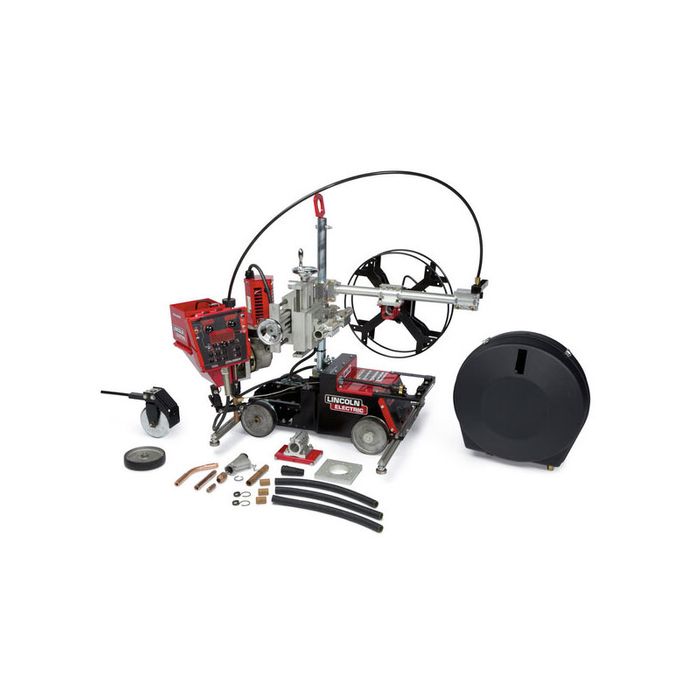

WHAT'S INCLUDED

  • Conduit Tubing – 1.5m
  • 5/32 in. (4.0mm) 600 Amp Contact Nozzle Assembly
  • 5/32 in. Contact Tip
  • Nozzle Extension – 5 in. (127mm)
  • Curved Nozzle Extension 45°
  • Nozzle Extension Insulator
  • Flux Tubing
  • Flux Hose Clamps
  • Wire Reel Assembly
  • Wheels for Track Operation
  • Cross Slide Assembly
  • Front and Rear Outriggers
  • Enclosed Wire Reel
  • Wire Straightener (K1733-5)
  • Enclosed Wire Reel (2)

Note: Control cable not included.

SPECIFICATIONS

Number of Operators per Machine: 1
Input Voltage: 40V
Input Current: 8A
Number of driven rolls: 1 Roll
Feeder type: Automatic
Configuration: Single
Max spool diameter: 60lb
Feedhead Configuration: Single
Wire Configuration: Single
Dimensions (H x W x D): 736mm x 584.2mm x 914mm
Net Weight: 94kg
Warranty: 5 Years

Details

  • Brand:
    Lincoln Electric
  • Web Type:
    Lincoln Electric Machines
  • Unit/Pack:
    EA
