Bug-O K-BUG 1202 Gear Driven Fillet Welder 240V

Stock Code:
KBUG-1202
Contact Us For Price
Special order item
Qty Quote or Package Deal
Add to Favourites

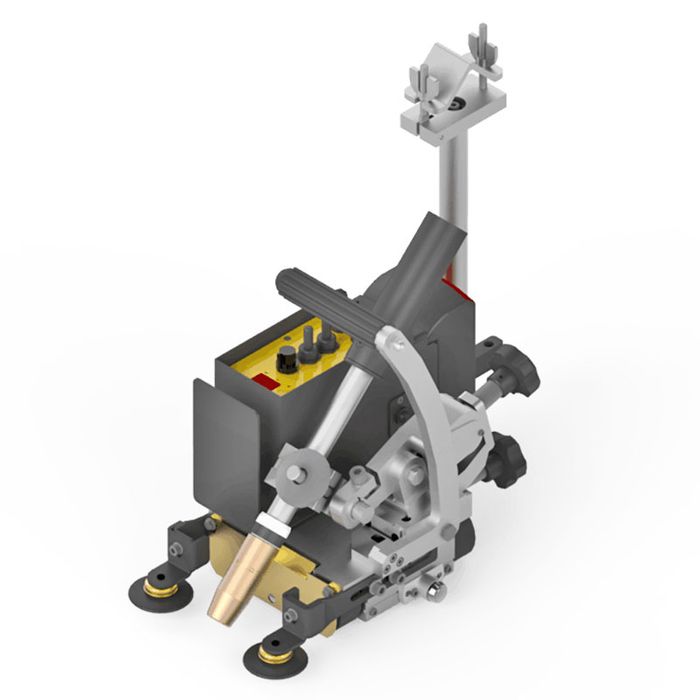

The Bug-O K-BUG 1202 Gear Driven Fillet Welder is a compact, portable, straight-line tractor equipped with rugged gear drive and improved torch adjustment profile. It's compact lightweight design allows the machine to be taken to the workpiece to fit in confined spaces. The Gear Drive has been incorporated to handle the strain of prolonged operation and to improve reliability. Creating continuous or intermittent “stitch” welds at a constant travel speed produces high quality, uniform welds in a fraction of the time required for manual welding. By taking the gun out of the operator’s hand there is less fatigue for the welder. The welder then monitors the puddle and lets the machine do the motion control. Regulated travel speed eliminates excessive weld deposition and helps reduce defects. Precise puddle control improves penetration and controls undercut.

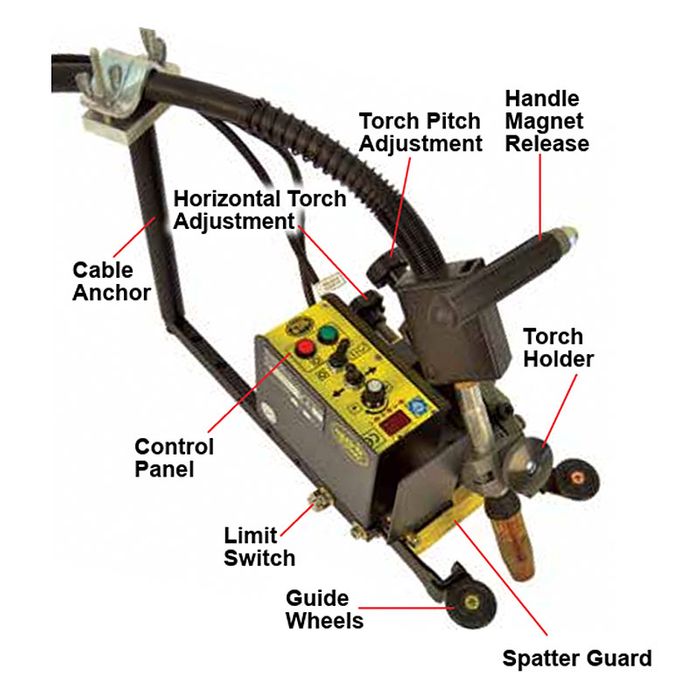

The K-BUG 1202 includes a “Torch Quick Connect” feature that allows the operator to easily remove or install the torch from the machine for quick nozzle cleaning, wire cutting and hand welding. The handle is not only for carrying but is also a magnet release. When you pull back on the handle it releases the magnetism to allow for easy positioning.

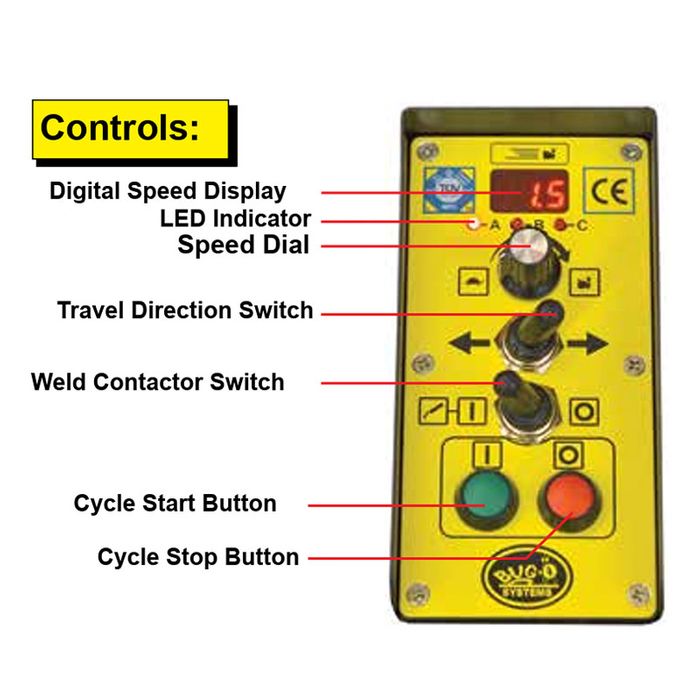

The machine controls are quite simple: cycle start button, cycle stop button, weld contactor switch, travel direction switch and the speed control dial, which also doubles as a selector dial when setting the background parameters. The digital speed display numerically shows real-time travel speed in in/min. (cm/min). It also displays parameters during setup of intermittent function and time settings.



FEATURES

Increase welding production and improve weld quality, with the freedom of no power cord.

  • State of the art digital technology ensures accuracy
  • High torque, low inertia motor for precise stops and starts
  • Gear driven for greater reliability
  • Drive unit motor overload protection
  • Low profile, easy to access torch adjustment knobs
  • Stores travel settings after power is turned off
  • Programmable puddle build and crater fill times
  • Weld Contactor Enable Switch
  • Carriage Travel and Arc Start in one switch
  • Guide wheels track web or flange of work piece
  • Capable of traveling up to a 75° incline
  • Lightweight carriage with powerful permanent magnets to grip work piece
  • Closed loop speed control provides adjustable and repeatable control
  • Built-in Stainless Limit Switches stop tractor travel and welding when activated
  • Digital programming of weld length, skip length and total travel distance
  • Gasket sealed housing provides an IP63 rating

SPECIFICATIONS

Power Requirement: 240V/50-60Hz/1Ph
Welding Position: Flat “down hand” position
Pulling Power: 6.8kg
Tractor Speed: 3-95cm/min
Torch Holder: Fits barrels up to 19mm diameter
Drive wheels: Rated to 204°C
Ingress Protection: IP63 Rating (Total dust ingress protection Water spray < 60° from vertical)

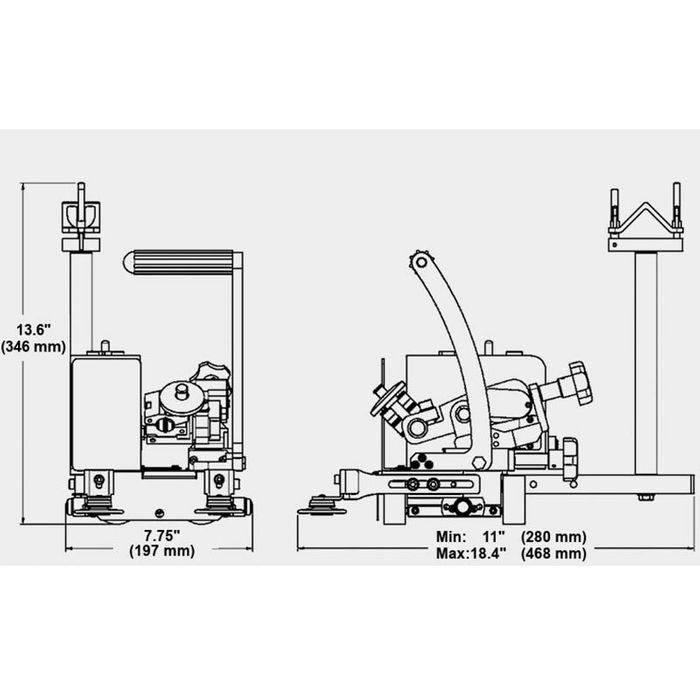

Shipping Dimensions: 387 x 330 x 381mm
Shipping Weight: 10kg
Net Weight: 5.9kg
