Bug-O K-BUG 3002 Heavy Duty Digital Fillet Welder 240V

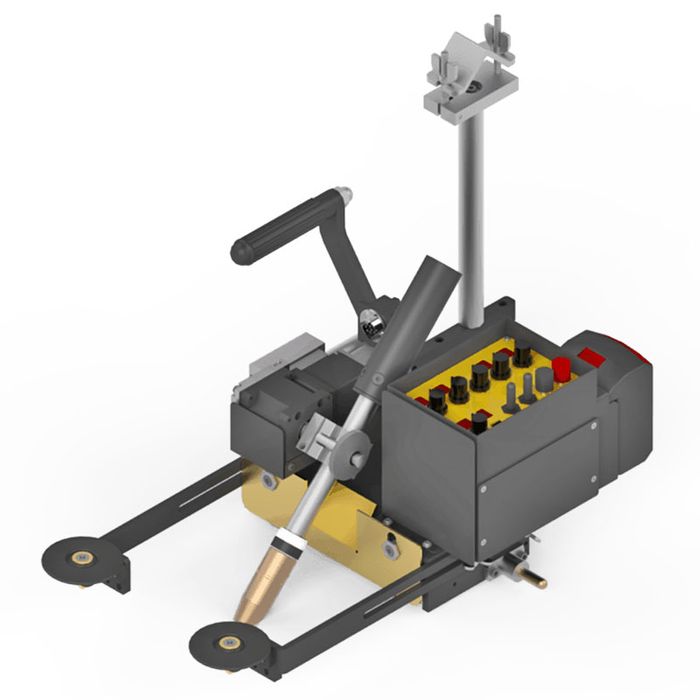

The Bug-O K-BUG 3002 Heavy Duty Digital Fillet Welder is a digital, compact, heavy duty fillet welder with oscillation designed for welding fillet joints. A lightweight, portable carriage utilises powerful magnets and guide wheel clamps to track directly to the work piece. The compact lightweight design allows the machine to be taken to the workpiece to fit in confined spaces. By taking the gun out of the operator’s hand there is less fatigue for the welder. No more starting and stopping for welds longer than 16 inches. When the K-BUG 3002 carries the torch, it provides uniform heat input and puts the right amount of weld in the right place.
The K-BUG 3002 offers programmable control of weave parameters that include tractor speed, weave speed and weave width. This K-BUG also has independent settings for left/right dwell. The K-BUG 3002 has the capability to perform in horizontal, vertical and flat positions. It's maximum vertical lifting capacity is 22.7kg. Safety cables are recommended to protect the operator and equipment. Control of all tractor and welding functions can be set or adjusted on the tractor’s panel or remotely via remote control. Remote range is up to 10m away.
FEATURES

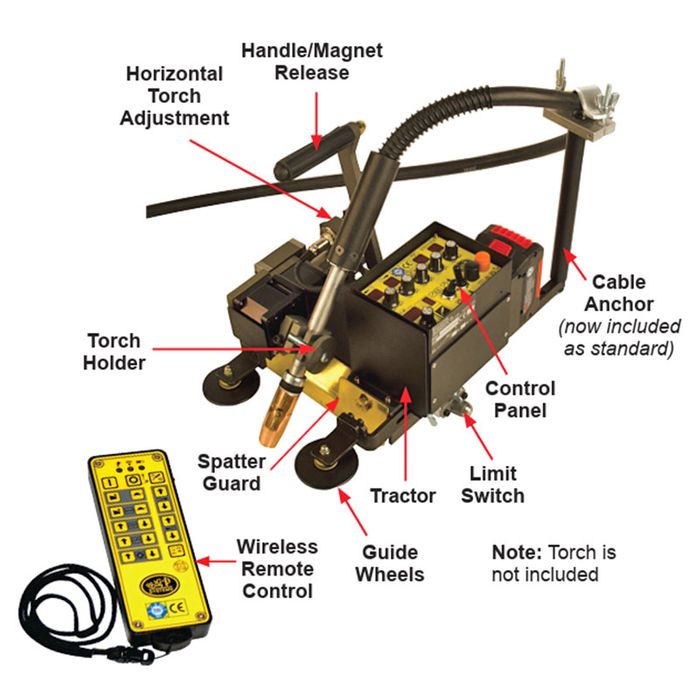

A magnetic travel carriage with oscillation for welding in all positions.
- Digital compact all position fillet welder
- Wireless Remote Control
- State of the art digital technology ensures accuracy
- Industry’s smallest and lightest all position oscillating fillet welder

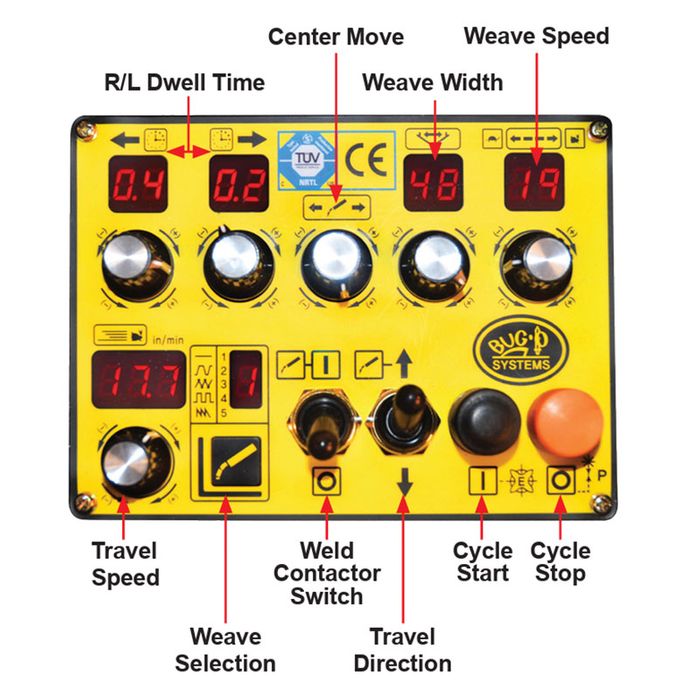

- Digital LED display of all parameters
- Independent left/right dwell times
- Five weave patterns
- Permanent magnet for powerful traction
- Magnet release for easy positioning of carriage
- Closed loop speed and position control
- Spatter Guard on work-side wheels
- Electronics rated to 80°C
- Drive Wheels are rated to 204°C
- Limit switches provide automatic travel/weld stop
- Programmable weld control features for better puddle control and crater fill
SPECIFICATIONS
Voltage: 240V/50-60Hz/1Ph
Drive Motor: 24V, 12W, 5000 RPM
Travel Speed: 3.0 - 88cm/min
Torch Holder: Fits barrels up to 19mm diameter
Torch Angle: 45° +/- 10°
Dwell Time: 0 - 9.9 sec per side
Y-Stroke: 0 - 20mm
Weave Width*: 26.67mm
Weave Speed*: 0 to 627cm/min
Cycles*: 68 cycles per min. at 26.67mm weave width, 115 cycles per min. at 13.34mm weave width and 200 cycles per min. at 6.35mm weave width

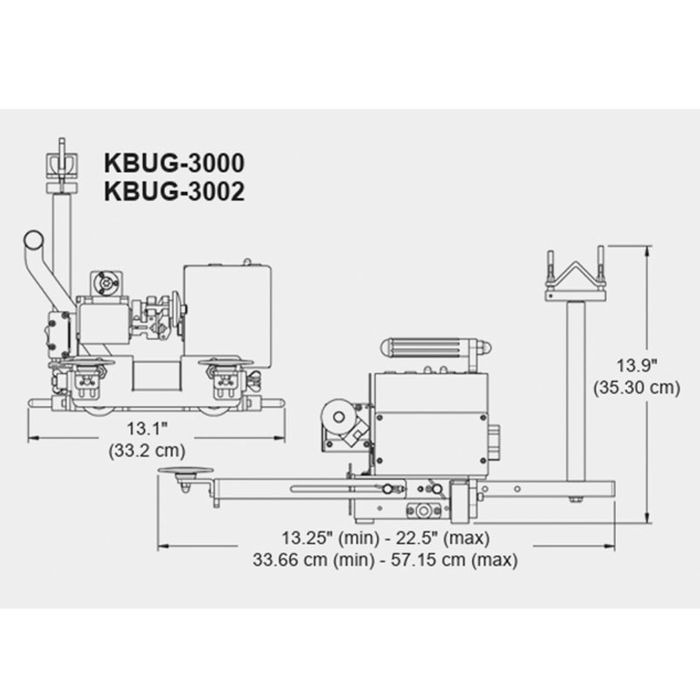

Dimensions (W x L x H): 33.66cm (min) - 57.15cm (max) x 33.2cm x 35.30cm
Shipping Dimensions: 51 x 48 x 38cm
Shipping Weight: 11.4kg
Net Weight: 9.2kg
* When torch Pivot-to-Tip length is 152.4mm. Increasing the Pivot-to-Tip length will increase the maximum speed and the weave width.
